895-037-559-404

Edgeboard Connectors Overview

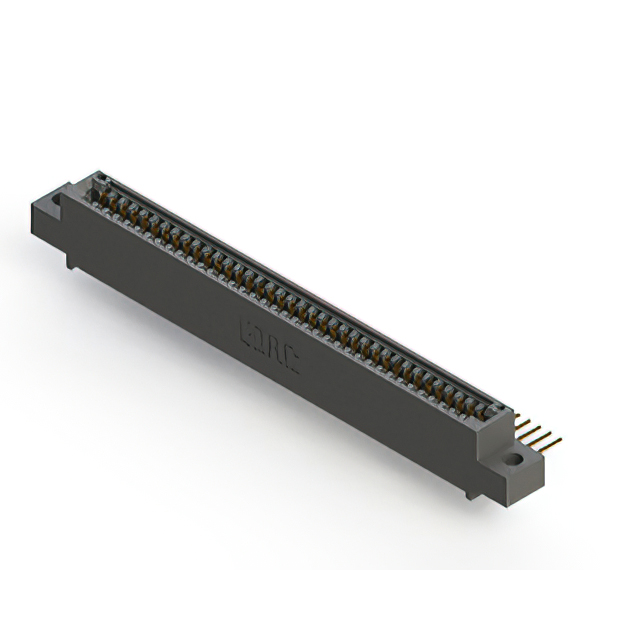

The EDAC Inc. 895-037-559-404 is a standard card edge connector receptacle featuring 37 positions with a 2.54 mm pitch. Designed for panel mount installation, it utilizes a right-angle orientation and solder pin termination. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. Rated for 3 A current, the housing is made of polyphenylene sulfide (PPS). It operates within a temperature range of -40 C to +125 C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide durable electrical connectivity.
• Polyphenylene sulfide housing ensures thermal stability and high insulation resistance.
• Right-angle panel mount design facilitates efficient board space utilization.

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing single-edge connectors
• Automotive electronics demanding high-temperature reliability

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 37-position configuration and right-angle mounting style. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper mechanical engagement. Check for RoHS compliance documentation if environmental regulations apply to the final assembly. Ensure the solder pin termination method aligns with the manufacturing process capabilities.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 37-position connector with a 2.54 mm pitch is required. The right-angle orientation is suitable for applications where vertical clearance is limited but horizontal space allows for side-mounted connections. Verify that the 3 A current rating meets the circuit requirements and that the operating temperature range covers the expected environmental conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles to accommodate different interface needs. The 895-037-559-404 specifically addresses applications needing a moderate number of connections with reliable solder termination and high-temperature performance characteristics typical of PPS-based housings.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series parts for alternative position counts or mounting angles. Ensure any substitute maintains the 2.54 mm pitch and 1.57 mm board thickness compatibility. Verify that contact material and plating specifications match to preserve electrical performance integrity.
