Edgeboard Connectors Overview

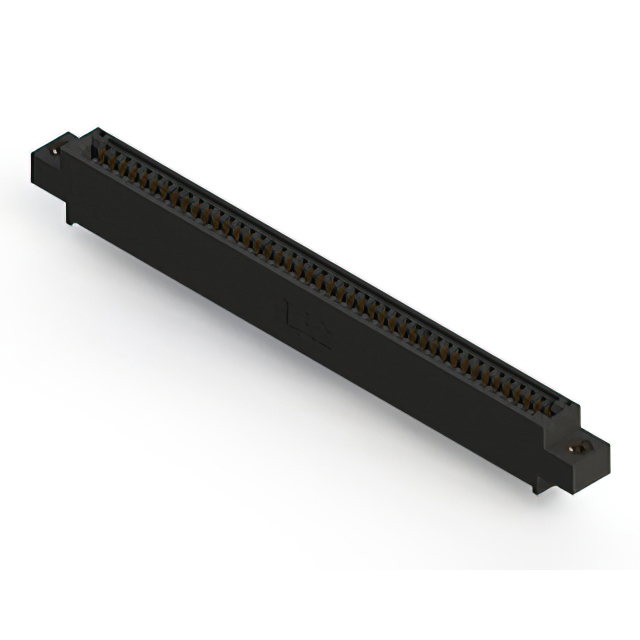

The EDAC Inc. 895-044-525-608 is a card edge connector featuring 44 positions in a single row female configuration. It utilizes a 0.100 inch (2.54mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The connector employs gold-plated contacts on a copper alloy base, housed within a black high-profile polyphenylene sulfide insulator body. Designed for panel mount installation, it supports solder pin termination to ensure secure electrical connections.

Edgeboard Connectors Feature Summary

• High-profile insulator body construction
• Gold-plated contact surfaces
• Single row female terminal design

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment
• Medical devices
• Energy sector applications

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target board thicknesses and mounting requirements. Ensure that procurement channels provide genuine components with valid RoHS compliance records. Cross-reference datasheet specifications regarding operating temperature ranges and insulation resistance values before finalizing acquisition orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 44 positions is required for panel-mounted installations. Consider the 0.100-inch pitch and 0.062-inch board thickness compatibility during mechanical design phases. Evaluate the high-profile housing dimensions for adequate clearance within the enclosure structure relative to adjacent components.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations tailored for diverse electronic interconnect needs. The 895 series is recognized for its robust construction and reliable performance in demanding environments across multiple industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify dimensional compatibility and electrical ratings before substituting with other series members.
