895-046-524-201

Edgeboard Connectors Overview

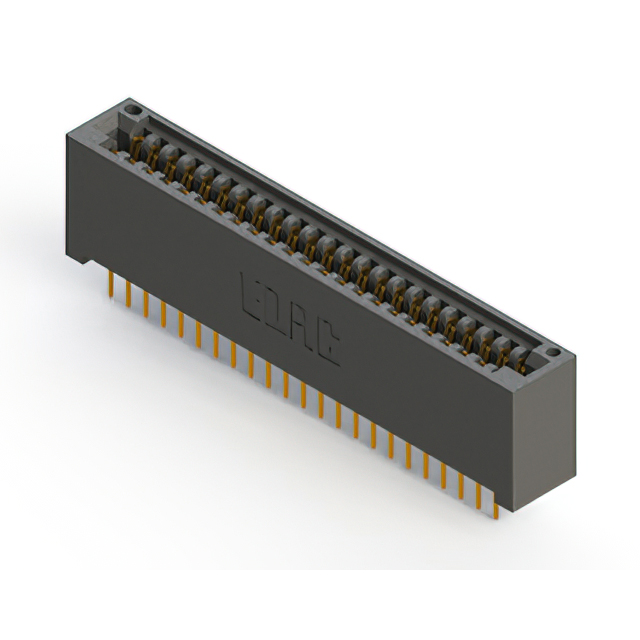

The EDAC Inc. 895-046-524-201 is a standard card edge connector designed for dual-edge board applications. It features 46 positions with a 0.100 inch (2.54 mm) pitch, configured as a female receptacle. The component utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. It supports through-hole termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable signal transmission
• Polyphenylene sulfide insulation material for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's ordering guide to ensure correct termination style and mounting options. Confirm that the target PCB thickness aligns with the connector's specified tolerance range. Check RoHS compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-edge female connector with a 2.54 mm pitch is required. Ensure the application environment stays within the -40°C to +125°C operating range. Verify that the PCB design accommodates the through-hole mounting style and the specific flange dimensions provided in the datasheet.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination styles. The 895-046 variant specifically provides 46 positions, balancing density and spacing for general-purpose electronic interconnections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for direct substitutes. Compatible alternatives may include other 46-position dual-edge connectors from the same series with matching pitch and termination requirements.
