Edgeboard Connectors Overview

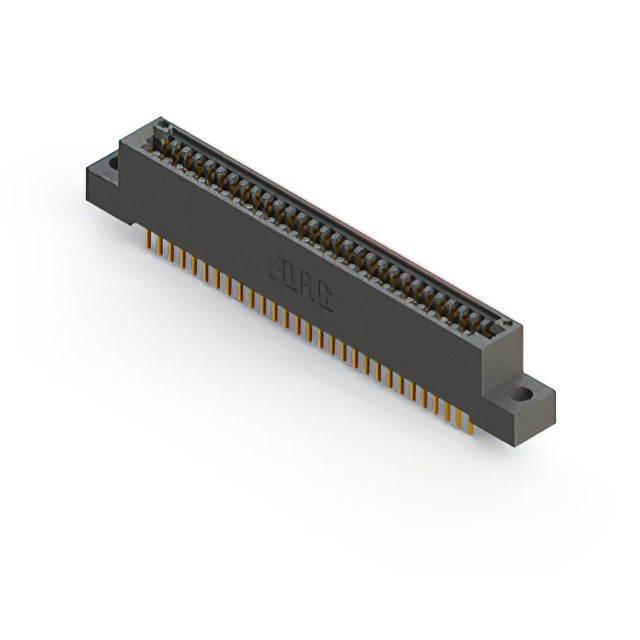

The EDAC Inc. 895-058-541-204 is a dual-edge female card edge connector from the 895 series, designed for through-hole mounting. It features 58 positions with a 0.100-inch (2.54mm) contact spacing and gold-plated contacts. The connector supports board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated contacts ensure reliable signal transmission
• Through-hole termination for robust PCB attachment

Edgeboard Connectors Applications

• Industrial control systems
• Communication equipment interfaces
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify part authenticity against EDAC Inc. official documentation. Confirm that the specific suffix matches the required pin count and spacing specifications. Ensure compliance with RoHS3 standards as indicated in manufacturer records. Cross-reference ordering guides for accurate selection.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 58 positions is required. Verify that the PCB thickness falls within the specified operational range. Ensure compatibility with the target system's mechanical constraints and thermal requirements before integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. It is manufactured by EDAC Inc. and is categorized under edge board connectors. The series is known for providing reliable interconnection solutions in various electronic applications.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC Inc. directly for potential cross-references or updated model recommendations.
