895-068-500-608

Edgeboard Connectors Overview

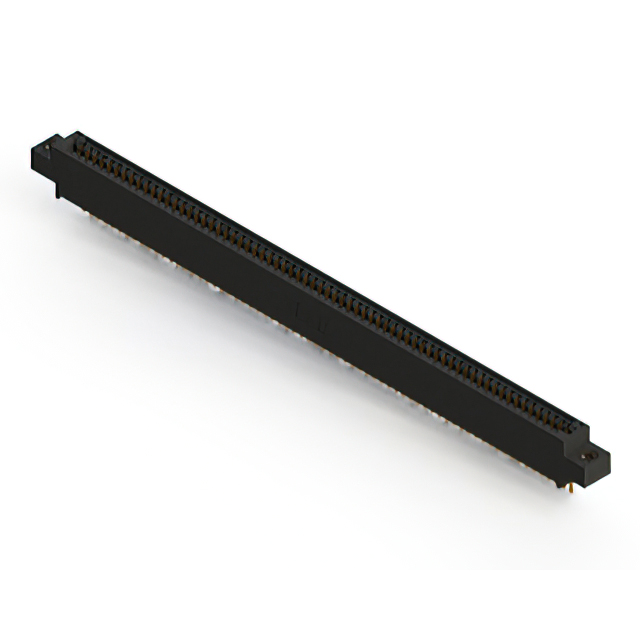

The EDAC Inc. 895-068-500-608 is a standard card edge connector from the 895 series, designed for through-hole mounting. It features 68 positions in a single row with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. It supports board thicknesses of 1.57mm and operates within a temperature range of -40°C to +125°C. The component includes a top mount opening with a threaded insert for secure panel installation.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for non-specified card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Polyphenylene sulfide insulation provides high-temperature stability
• Panel-mount design with threaded insert for secure mechanical fixation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware operating in harsh environments
• General-purpose electronic assemblies utilizing standard card edges

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact flange and termination specifications. Ensure compatibility with the target PCB board thickness of 1.57mm. Confirm that the single-edge female configuration matches the design requirements. Check RoHS3 compliance status if required by project regulations before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 2.54mm pitch is required for panel-mounted applications. The PPS material and gold plating make it suitable for environments demanding thermal resilience and corrosion resistance. Consider the 68-position count for circuit density needs. Ensure the threaded insert mounting style aligns with the chassis or panel design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors, which offers various configurations including dual-edge and multi-row options. The series is characterized by its use of high-performance thermoplastics and durable metal contacts. It serves as a reliable solution for connecting printed circuit boards to backplanes or chassis in industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for alternative part numbers with different position counts or row configurations. Verify mechanical dimensions and electrical ratings before substituting with other manufacturers' products to ensure functional equivalence.
