895-070-559-808

Edgeboard Connectors Overview

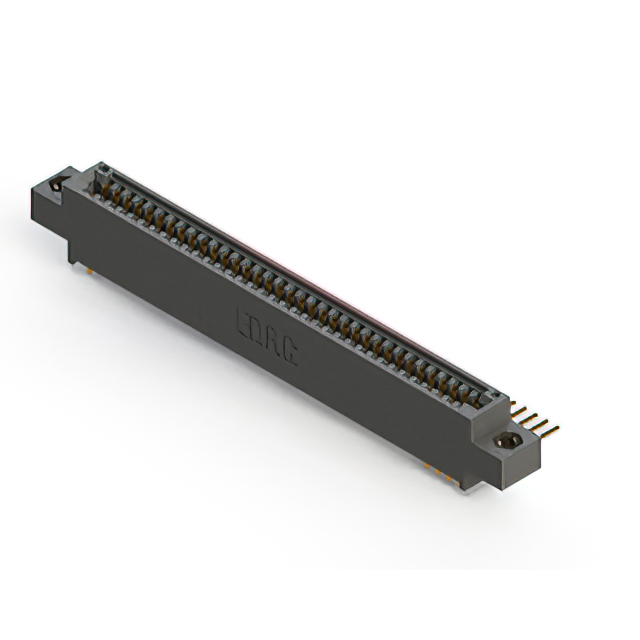

The EDAC Inc. 895-070-559-808 is a dual-edge female card edge connector featuring 70 positions with a 0.100-inch (2.54mm) pitch. It utilizes a double-row configuration and is designed for panel mount installation. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. The housing is constructed from black polyphenylene sulfide (PPS), providing robust insulation. This component supports a wide operating temperature range of -40°C to +125°C and includes flange features with top mount openings and threaded inserts for secure attachment.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for standard card edge applications
• Gold-plated copper alloy contacts for enhanced conductivity
• Polyphenylene sulfide insulation material for thermal stability
• Panel mount style with threaded insert flange features

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware exposed to harsh environments
• General electronic assemblies utilizing standard card edge modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 895 Series Ordering Guide to ensure compatibility with required flange types and termination styles. Confirm that the panel mount requirements align with the threaded insert specifications provided in the datasheet. Cross-reference the lead time with current distributor availability, as manufacturing schedules may vary. Ensure environmental compliance documentation matches project requirements.

Edgeboard Connectors Selection Notes

Select this model when a 70-position dual-edge interface is required for panel-mounted applications. The 0.100-inch pitch dictates compatible board trace spacing. Consider the PPS insulation material for high-temperature resilience within the specified operational range. Evaluate the threaded flange feature against available mounting space constraints on the chassis or enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting options. The 895-070 variant specifically addresses mid-range density needs. It is part of a broader portfolio including medical and agricultural interconnect solutions designed for reliability in demanding sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with identical pin counts but different mounting features, such as 895-070-556-802 which lacks threaded inserts. Verify mechanical dimensions and electrical ratings before swapping. No other manufacturers offer exact cross-model equivalents with identical form factors.
