896-010-521-104

$29.39

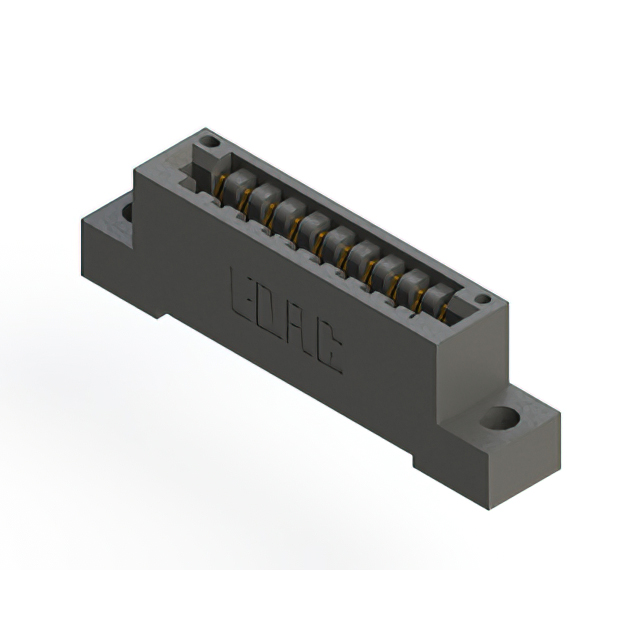

Description：CONN EDGE SGL FMALE 10POS 0.125
Series：896
Mfr：EDAC Inc.
Package：Bulk

SKU:844901c71e7b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

896-010-521-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 10POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 896-010-521-104

Description：CONN EDGE SGL FMALE 10POS 0.125
Series：896
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：10
Number of Positions：10
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 896-010-521-104

896-010-521-104

Edgeboard Connectors Overview

The EDAC Inc. 896-010-521-104 is a standard card edge connector receptacle designed for high-temperature applications. It features 10 positions with a single row configuration and a pitch of 3.175 mm (0.125 inch). The component utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. It supports a maximum operating temperature of +125°C and a minimum of -40°C, with an insulation resistance of 5 GOhms and a current rating of 3 A.

Edgeboard Connectors Feature Summary

High-temperature capability suitable for demanding thermal environments
Gold-plated contacts ensure reliable signal transmission
Polyphenylene sulfide housing provides structural stability

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm terminal type and plating specifications against official datasheets. Confirm panel mount orientation and board thickness compatibility during sourcing. Check regional availability restrictions as distribution may vary by location.

Edgeboard Connectors Selection Notes

Select this model for vertical panel mount installations requiring a 1.57 mm board thickness. Ensure the application environment remains within the specified -40°C to +125°C operational range. Verify that the 3.175 mm pitch aligns with the mating card edge design requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of high-temperature card edge connectors. The series is engineered for durability in harsh conditions, utilizing robust PPS materials and gold contacts to maintain performance across wide thermal cycles and industrial usage scenarios.
