896-034-521-802

Edgeboard Connectors Overview

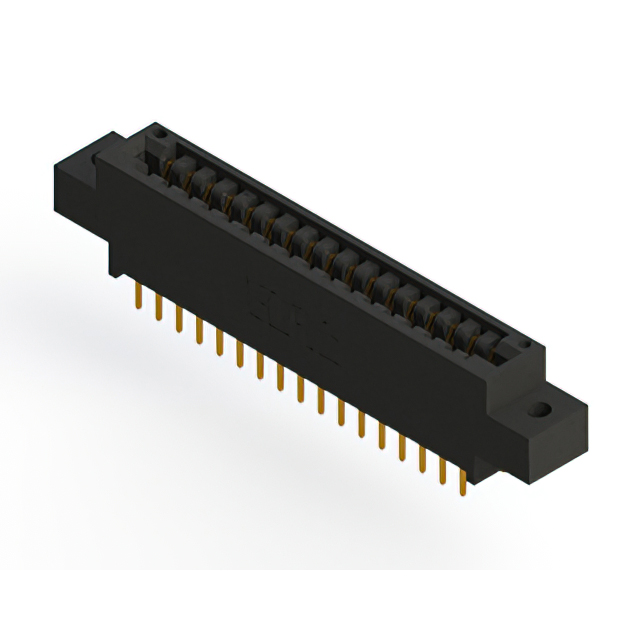

The EDAC Inc. 896-034-521-802 is a standard card edge connector receptacle designed for high-temperature applications. It features 34 positions with a contact spacing of 0.125 inches (3.175 mm) and a row spacing of 0.250 inches (6.35 mm). The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated contacts on a dual-edge configuration and employs a black polyphenylene sulfide (PPS) insulator body. The connector supports panel mount installation in a right-angle orientation, ensuring secure vertical mating with corresponding card edge interfaces.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating standard PCB thicknesses
• Gold-plated contacts ensure reliable signal transmission in high-temperature environments
• High-profile insulator body constructed from durable polyphenylene sulfide material
• Right-angle panel mount configuration for efficient space utilization

Edgeboard Connectors Applications

• Medical interconnect solutions requiring robust connectivity
• Agricultural technology equipment operating in harsh environments
• Industrial control systems utilizing card edge interface modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating, termination style, and mounting configuration required for your assembly. Confirm that the target PCB thickness aligns with the 0.062-inch specification. Check current supply status as availability may vary by region. Ensure compatibility with mating card edge connectors regarding pitch and row spacing before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, panel-mount solution is required for single-row or dual-edge card connections. The 0.125-inch pitch suits applications needing moderate density without excessive board width constraints. Consider the high-temperature rating if the operational environment exceeds standard commercial limits. Verify that the wire wrap or solder termination method matches the available PCB layout options.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series, which specializes in standard card edge connectors engineered for durability and performance. The series offers various position counts and mounting styles to support diverse electronic assembly needs. Components in this line are frequently utilized in sectors demanding reliable interconnects under stress, such as medical and agricultural technologies, where consistent electrical performance is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 896-034-521-602 or 896-034-521-802 variants with different suffixes indicating alternate plating or packaging. Cross-series replacements require matching the 0.125-inch pitch, 34-position count, and 0.062-inch board thickness acceptance. Always validate mechanical dimensions and electrical ratings against the original design specifications.
