896-038-555-202

Edgeboard Connectors Overview

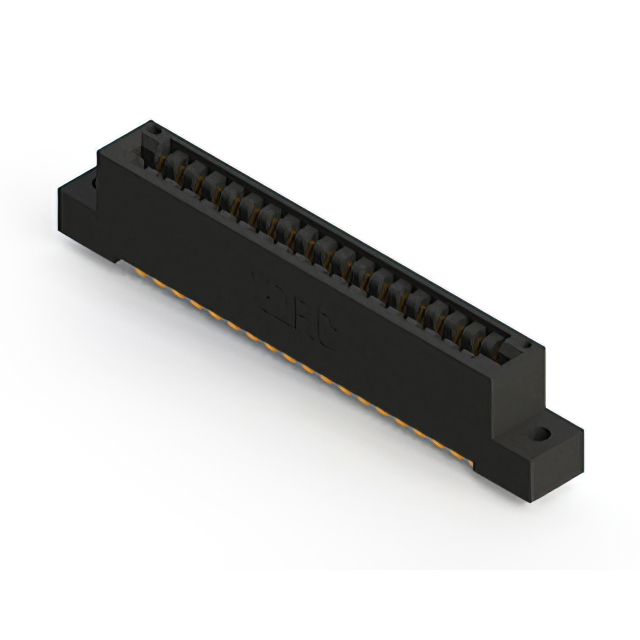

The EDAC Inc. part number 896-038-555-202 is a standard card edge connector receptacle designed for high-temperature applications. It features a dual female contact configuration with 38 positions arranged in a single row. The connector utilizes a pitch of 0.125 inches (3.175 mm) and supports a board thickness of 1.57 mm. It employs gold plating on the contacts to ensure reliable signal transmission. The unit is constructed with a black insulator and is intended for panel mount installation at a right angle.

Edgeboard Connectors Feature Summary

• Dual edge female contact design for secure card engagement
• Gold-plated terminals for enhanced conductivity and corrosion resistance
• Right-angle panel mount configuration for space-efficient integration

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh environments
• General-purpose electronic assemblies needing reliable card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, pitch, and termination style. Ensure compatibility with the target PCB thickness and mounting requirements. Confirm RoHS compliance status if required by project specifications. Cross-reference the full part number with authorized distributors to avoid counterfeit components. Check for any regional shipping restrictions or availability limitations before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for high-temperature stability. The 0.125-inch pitch accommodates standard board widths while maintaining dense contact arrangements. Right-angle mounting facilitates compact enclosure designs where vertical clearance is limited. Gold plating ensures long-term reliability in demanding operational conditions. Verify that the 38-position count matches the circuit board trace layout requirements.

Edgeboard Connectors Part Context

This component belongs to EDAC's standard card edge connector series, which provides robust interconnect solutions for various industries. The 896 series specifically targets applications requiring high-temperature performance and durable mechanical connections. EDAC offers a comprehensive range of connectors and cable assemblies designed for medical, agricultural, and industrial sectors, emphasizing reliability and environmental resilience in their product portfolio.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the manufacturer's official cross-reference guides or engineering support for potential alternatives. Ensure any replacement maintains identical electrical parameters, mechanical dimensions, and temperature ratings.
