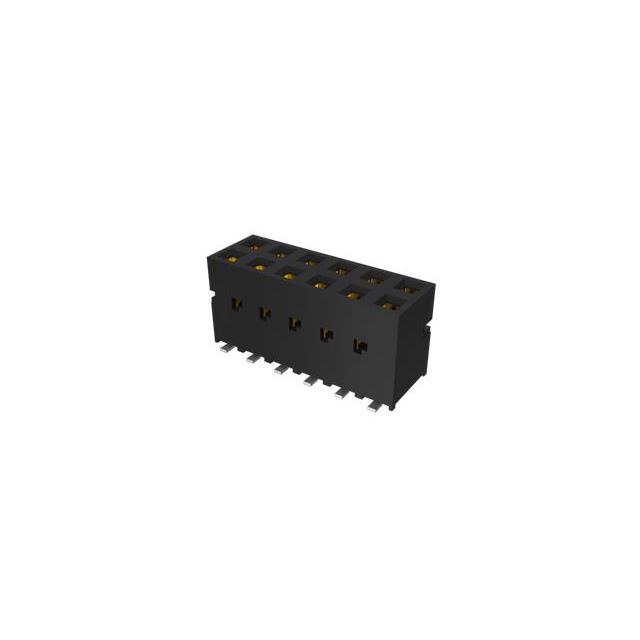

91618-317LF

Description：CONN RCPT 34POS 0.1 GOLD SMD
Series：Dubox™
Mfr：Amphenol ICC (FCI)
Package：Tube

SKU:5753165b1228 Category: Headers, Receptacles, Female Sockets Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

91618-317LF is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN RCPT 34POS 0.1 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 91618-317LF

Description：CONN RCPT 34POS 0.1 GOLD SMD
Series：Dubox™
Mfr：Amphenol ICC (FCI)
Package：Tube
Connector Type：Receptacle, Bottom or Top Entry
Contact Type：Female Socket
Style：Board to Board
Number of Positions：34
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Insulation Color：Gray
Insulation Height：0.275" (6.99mm)
Contact Length - Post：-
Operating Temperature：-
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：10.81mm
Ingress Protection：-
Features：Board Lock
Current Rating (Amps)：-
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 91618-317LF

91618-317LF

Headers, Receptacles, Female Sockets Overview

The Amphenol ICC (FCI) 91618-317LF is a rectangular connector from the Dubox series, designed for board-to-board applications. It features a 0.100" (2.54mm) mating pitch and a 0.100" row spacing. The component has 34 positions arranged in two rows with all pins loaded. It utilizes a push-pull fastening type and surface mount installation. The contacts are square-shaped phosphor bronze with gold plating on the mating interface.

Headers, Receptacles, Female Sockets Feature Summary

Push-pull fastening mechanism for secure connection
Board-to-board style configuration
Gold-plated phosphor bronze contacts

Headers, Receptacles, Female Sockets Applications

Automotive systems
Industrial equipment
Telecommunications infrastructure

Headers, Receptacles, Female Sockets Procurement Notes

Verify RoHS compliance status as the source data indicates non-compliance for similar parts in this family. Confirm lead times and availability through authorized distributors. Ensure the specific suffix matches design requirements. Check for obsolescence notices or lifecycle changes before finalizing procurement plans.

Headers, Receptacles, Female Sockets Selection Notes

Select this part for high-density interconnect needs requiring robust mechanical retention. The 34-position count suits complex signal routing. Verify stacking height compatibility with the target PCB assembly. Consider the push-pull feature for applications requiring frequent maintenance access.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Dubox series of connectors manufactured by Amphenol ICC (FCI). The series is known for providing reliable interconnection solutions across various sectors. The 91618 base number identifies the specific form factor within the broader product line.
