Headers, Male Pins Overview

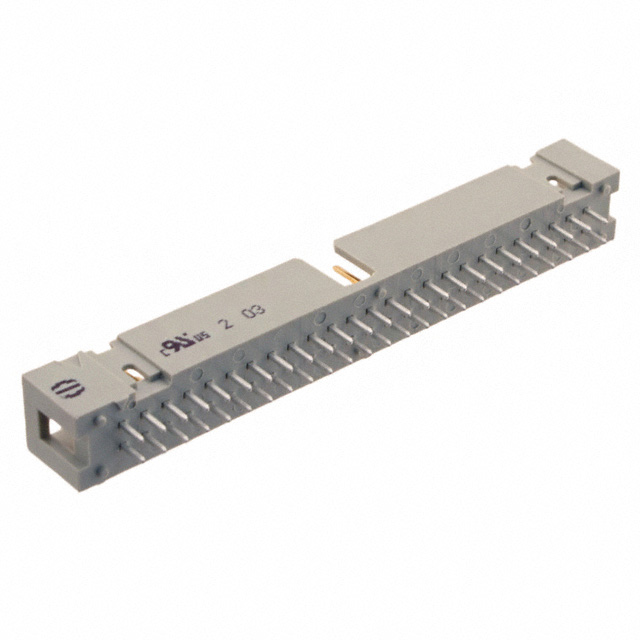

The HARTING 09185506324 is a 50-pin double-row PCB header from the SEK 18 series, designed for wire-to-board connections. It features a 2.54 mm pitch and straight orientation with through-hole mounting. Rated for 1 kV voltage and 1 A current, it operates between -55°C and 125°C. The connector utilizes gold-plated copper alloy contacts housed in polybutylene terephthalate (PBT) insulation. This component includes a cover and employs solder termination for secure board attachment.

Headers, Male Pins Feature Summary

• High-voltage capability rated at 1 kV for robust signal integrity
• Gold-plated copper alloy contacts ensure reliable conductivity
• Polybutylene terephthalate housing provides thermal stability
• Integrated cover protects contacts during storage and handling

Headers, Male Pins Applications

• Industrial control systems requiring high-voltage isolation
• Automotive electronic modules
• Factory automation equipment interfaces
• Power distribution units

Headers, Male Pins Procurement Notes

Verify the exact part number against official HARTING documentation to confirm pin count and series compatibility. Ensure that the specified voltage and current ratings align with your circuit requirements. Check for any specific ordering suffixes that may alter the physical dimensions or contact configuration before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 50-pin double-row connection is required with a standard 2.54 mm spacing. Consider the SEK 18 series for applications needing high voltage resistance up to 1 kV. Evaluate the operating temperature range of -55°C to 125°C against environmental conditions. Confirm that through-hole mounting and solder termination are compatible with your PCB assembly process.

Headers, Male Pins Part Context

This connector belongs to the HARTING SEK 18 series, which specializes in micro-connectors for dense wiring applications. The series is engineered for reliability in industrial environments, offering consistent performance across various mechanical stresses. HARTING designs these components to meet rigorous standards for durability and electrical safety in demanding sectors.

Headers, Male Pins Replacement Considerations

Consult official HARTING cross-reference guides for verified substitute part numbers. Ensure that any replacement maintains identical pin count, pitch, and voltage ratings. Verify that the alternative component matches the original housing material and termination style to preserve mechanical fit.
