929850-01-01-10

Headers, Receptacles, Female Sockets Overview

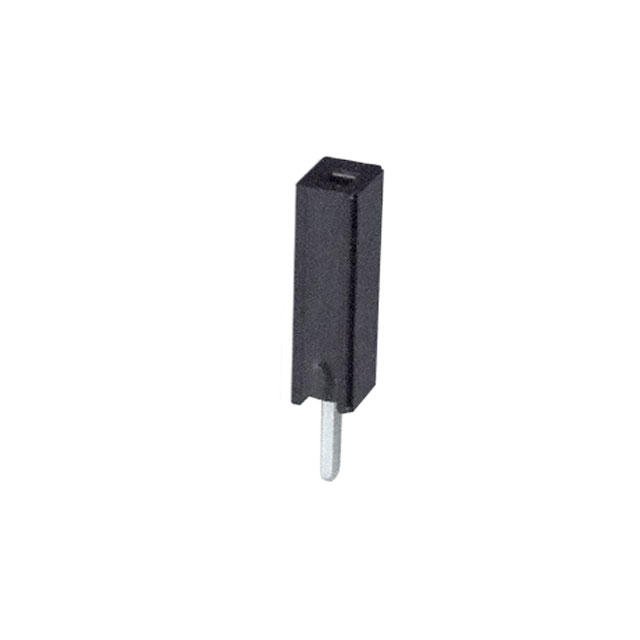

The 3M 929850-01-01-10 is a single-row boardmount receptacle connector from the 929 series. It features one position with a 0.100 inch (2.54mm) pitch and utilizes through-hole termination for PCB mounting. The contacts are female fork-style terminals with gold plating on the mating interface, while the tail exhibits a matte tin finish to facilitate wave soldering processes. Constructed with a black polyethylene terephthalate copolymer (PCT) insulator reinforced with glass fiber, this component supports a rated voltage of 1500V and operates within a temperature range of -40°C to 105°C. It employs a push-pull fastening mechanism for secure board-to-board interconnection.

Headers, Receptacles, Female Sockets Feature Summary

• Fork-style female contact design enables reliable mating engagement
• Matte tin plated tails support standard wave soldering production methods
• Push-pull fastening system ensures secure mechanical retention

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial automation control units
• Data center infrastructure hardware

Headers, Receptacles, Female Sockets Procurement Notes

Verify current availability status as this specific part number may be discontinued or superseded by updated revisions. Confirm that the required pin count and pitch match the target circuit design specifications. Ensure compatibility with existing mating headers regarding contact geometry and insulation height. Check for any RoHS compliance documentation if environmental regulations apply to the final assembly. Validate that the operating temperature range meets the thermal requirements of the intended application environment.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-position female receptacle with a 2.54mm pitch is required for vertical PCB mounting. The choice is appropriate for applications needing gold-plated contacts for corrosion resistance and low contact resistance. Consider the fork-style terminal shape for ease of mating with corresponding male pins. Evaluate the push-pull retention feature against other locking mechanisms like screw locks or snap-fits based on vibration requirements. Ensure the PCT insulator material aligns with the thermal and chemical exposure conditions of the deployment site.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the 3M 929 Series Pin Strip family, designed for high-density electronic assemblies. The series offers various row counts and positions to accommodate diverse routing needs. Components in this line typically feature low-profile designs to minimize overall assembly height. The standardized 0.100-inch spacing ensures interoperability with industry-standard mating connectors. This specific model represents the minimal configuration within the single-row receptacle subset.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct substitutes such as the 929850-01-01-RA variant which may offer different plating options. Verify if updated suffixes indicate changes in material composition or packaging format. Ensure any replacement maintains the same 2.54mm pitch and through-hole termination style. Confirm that the alternative part retains the push-pull fastening mechanism for equivalent mechanical performance.
