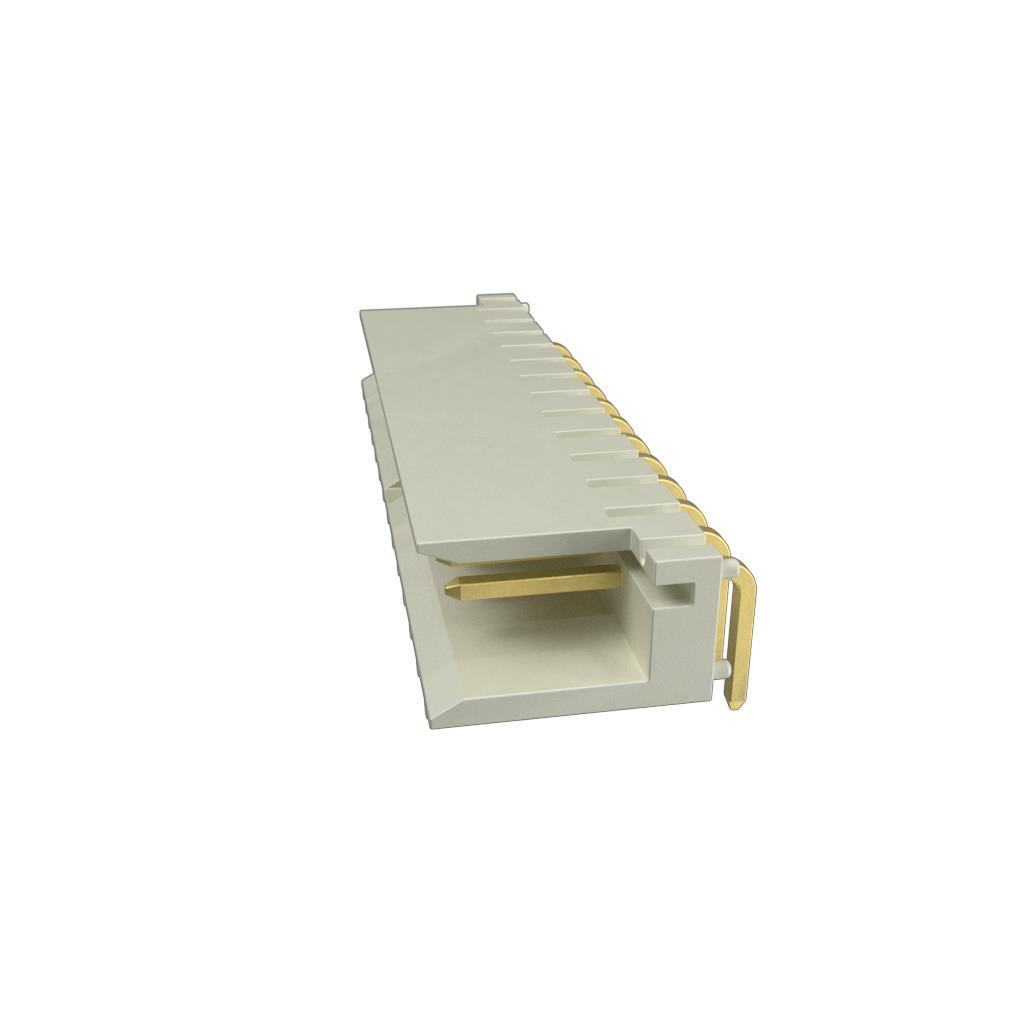

95736-112LF

95736-112LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER R/A 12POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 95736-112LF

• Description：CONN HEADER R/A 12POS 2.54MM
• Series：Clincher™
• Mfr：Amphenol ICC (FCI)
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：12
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Friction Lock
• Contact Length - Mating：-
• Contact Length - Post：0.120" (3.05mm)
• Overall Contact Length：-
• Insulation Height：0.203" (5.16mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：-
• Contact Material：Phosphor Bronze
• Insulation Material：Plastic
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：2A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 95736-112LF
