A10R104GV

Overview

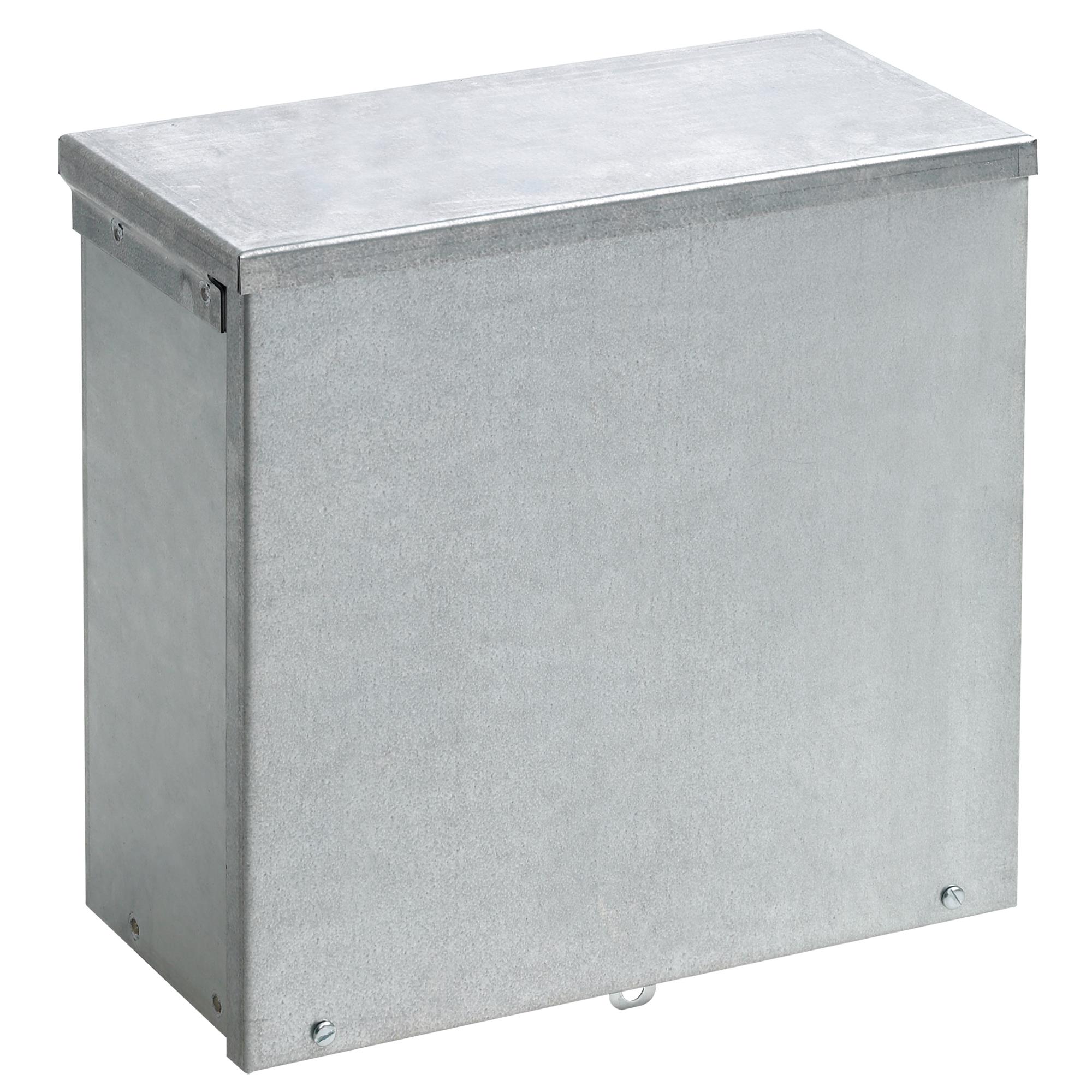

The Hoffman A10R104GV is a Type 3R steel enclosure with galvanized finish, measuring 10 inches in height, 10 inches in width, and 4 inches in depth. It features a screw cover design and includes knockouts for cable entry. The unit is rated NEMA 3R and IP32, providing protection against falling rain and sleet. It carries UL 50/50E, CUL, and CSA C22.2 approvals. Constructed from 16/14 gauge steel, it is designed for wall mounting in outdoor environments.

Feature Summary

• Galvanized drip-shield screw cover provides weather resistance
• Type 3R rating protects controls from rain and sleet
• Includes knockouts for flexible wiring access
• Horizontal or vertical mounting capability

Applications

• Outdoor wiring junction boxes
• Protection of electrical controls in wet environments
• Rooftop installations requiring horizontal mounting
• Pad-mounted equipment protection

Procurement Notes

Verify that the specific order matches the galvanized finish and screw cover configuration. Confirm that the required knockout locations align with the pre-drilled options provided by the manufacturer. Ensure installation hardware is sourced separately if not included in the base assembly. Check local code compliance for Type 3R usage in your specific region.

Selection Notes

Select this model when outdoor rain protection is required for low-voltage or control circuits. The compact 10x10x4 dimensions suit small junction tasks. Galvanized steel offers corrosion resistance for exterior use. Verify that internal component heat dissipation does not require additional ventilation beyond the standard screw cover design.

Part Context

This enclosure belongs to the Hoffman A10R series, which focuses on compact, weather-resistant solutions for industrial and commercial applications. The 'GV' suffix typically denotes the galvanized vertical style with screw cover. It complements other Hoffman climate control and accessory lines for complete panel assembly.

Replacement Considerations

Direct substitutes include models with identical NEMA 3R ratings and similar internal volume. Verify that replacement units maintain the same mounting hole patterns and knockout configurations to ensure compatibility with existing conduit runs.

FAQ

Is the A10R104GV suitable for submersion?

No, the Type 3R rating protects against rain and sleet but does not provide waterproofing for submersion or hose-down conditions.

What material is used for the enclosure body?

The enclosure is constructed from steel with a galvanized finish to resist corrosion.
