A16N20ALP

Overview

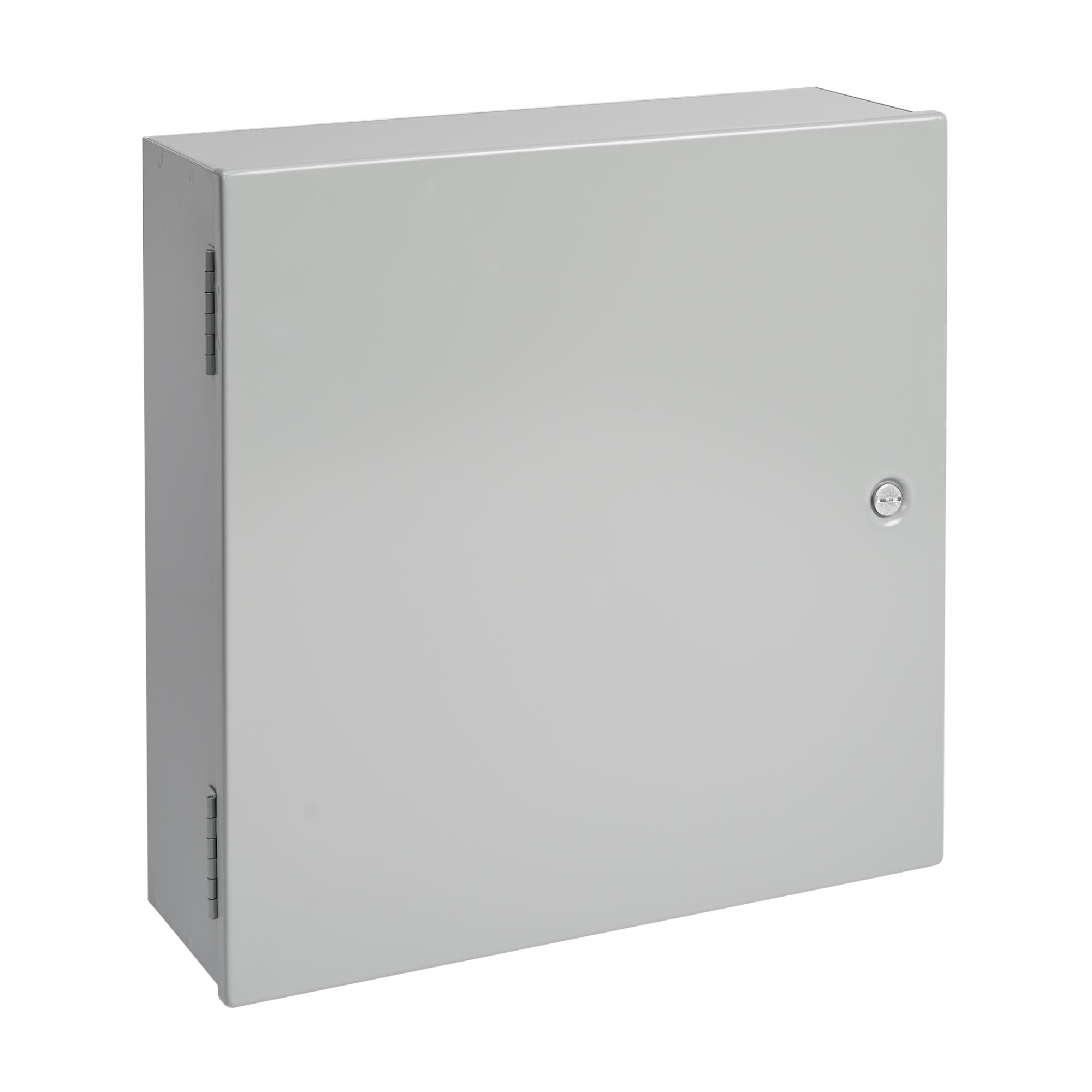

The Hoffman Enclosures A16N20ALP is a medium-sized hinged-cover pull box constructed from steel with a thickness of 14/12 gauge. It features an ANSI 61 Gray polyester powder-coated finish and measures 16.00 inches in height, 20.00 inches in width, and 6.62 inches in depth. The enclosure is rated NEMA 1/IP30 for indoor use. It includes removable doors attached via butt hinges and utilizes flush quarter-turn latches for secure closure. Mounting holes are provided on the back panel for installation.

Feature Summary

• Constructed from durable steel with a protective polyester powder-coated finish
• Features removable doors secured by butt hinges and flush quarter-turn latches
• Includes pre-drilled mounting holes on the rear panel for easy installation

Applications

• Indoor electrical component housing
• Control panel integration
• Industrial equipment protection

Procurement Notes

Verify that the specific project requirements align with the NEMA 1 rating, as this enclosure is designed for indoor environments only. Confirm that the internal dimensions accommodate all necessary components, noting that back panels are not included. Ensure compatibility with existing mounting infrastructure given the standard hole patterns. Check for any additional accessories required for sealing or grounding if environmental conditions vary slightly from standard indoor settings.

Selection Notes

Select this model when a robust, cost-effective solution for indoor electrical distribution is needed. The 16x20x6.62 inch size offers substantial volume for wiring and devices without excessive footprint. The steel construction provides mechanical strength suitable for industrial settings. Consider alternative materials like stainless steel if corrosion resistance is critical, or higher NEMA ratings if outdoor exposure is possible.

Part Context

This part belongs to the Hoffman Enclosures line of industrial pull boxes and enclosures. It is designed for general-purpose indoor applications where basic environmental protection against dust and falling objects is sufficient. The product series emphasizes durability and ease of access through its hinged door design.

Replacement Considerations

Direct substitutes may include other NEMA 1 enclosures of similar dimensions from Hoffman or compatible manufacturers. Verify dimensional accuracy and mounting hole alignment before substitution. Ensure material specifications meet the original design intent for structural integrity.
