A20SA2208LPPL

Overview

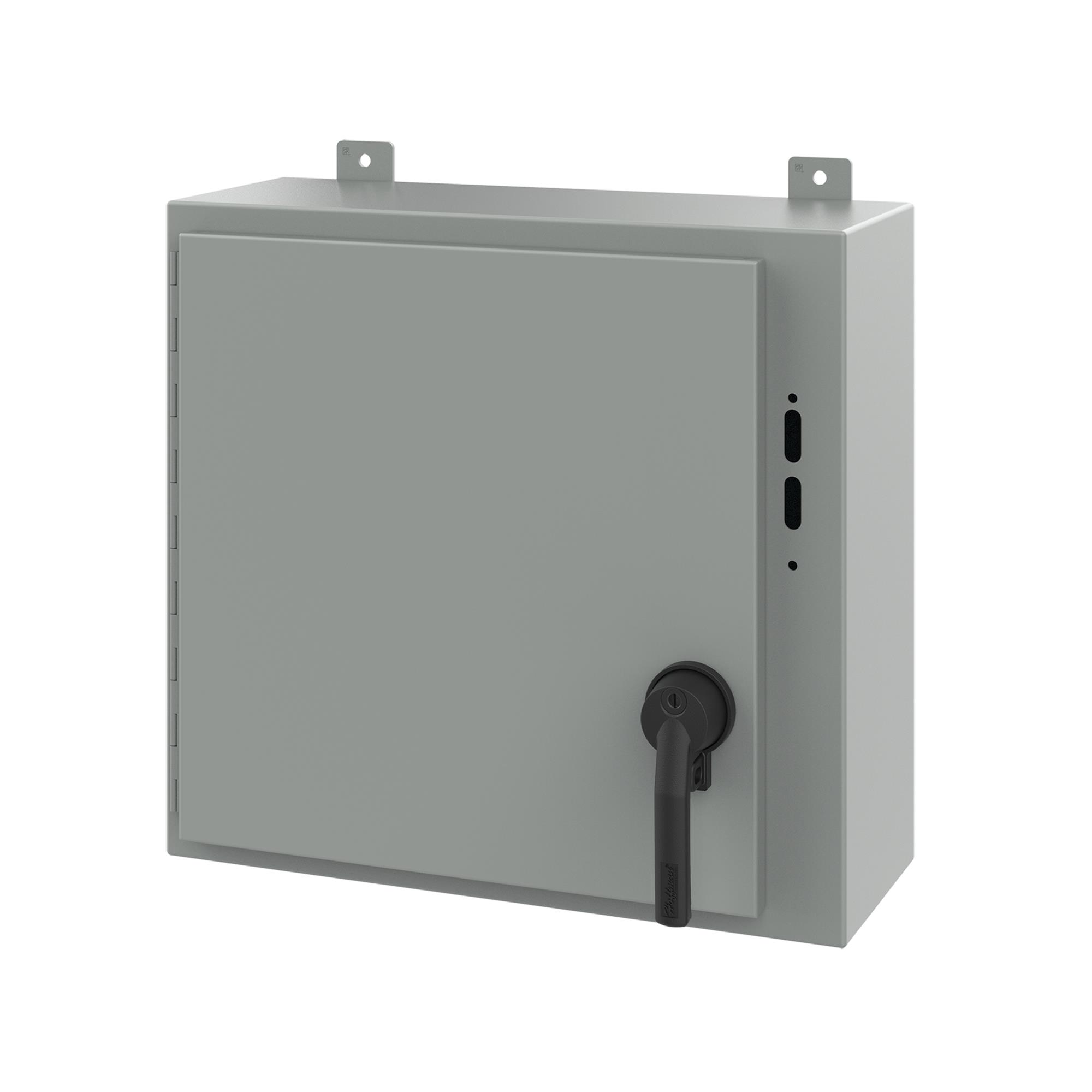

The A20SA2208LPPL is a metal enclosure manufactured by Hoffman Enclosures, Inc., designed for industrial equipment protection. It features a hinged door design and is constructed from steel with a gray finish. The unit provides environmental sealing compliant with NEMA 12 and IP65 standards, safeguarding internal components against dust, dirt, and dripping non-corrosive liquids. Standard dimensions are 20.000 inches in length, 22.000 inches in width, and 8.000 inches in height (508.00mm x 558.80mm x 203.20mm).

Feature Summary

• Hinged door configuration for convenient access to internal components.
• Steel construction with a durable gray powder coat finish.
• Environmental protection rated for NEMA 12 and IP65 standards.

Applications

• Industrial control panels requiring dust and liquid resistance.
• Enclosures for electrical components in manufacturing environments.
• Protection of automation hardware in indoor industrial settings.

Procurement Notes

Verify the specific suffix 'PL' against official Hoffman documentation to confirm if it denotes a particular accessory kit or mounting variation distinct from the base model. Confirm lead times directly with authorized distributors as standard delivery periods may vary. Ensure compatibility with existing DIN rail or panel mount requirements before finalizing procurement orders.

Selection Notes

Select this model when NEMA 12 and IP65 ingress protection is required for indoor industrial applications. Verify that the internal component layout fits within the specified 20x22x8 inch footprint. Consider the hinged door mechanism for frequent maintenance access compared to removable side panels. Ensure the steel material and gray finish meet facility aesthetic and corrosion resistance standards.

Part Context

This part belongs to the Hoffman A-series line of sheet metal enclosures. These units are widely used in factory automation and process control industries. The LP suffix typically indicates a specific depth or feature set within the broader A-series catalog, distinguishing it from deeper or shallower variants.

Replacement Considerations

Direct substitutes include other Hoffman models with identical NEMA 12/IP65 ratings and matching external dimensions. Verify hinge orientation and mounting hole patterns to ensure mechanical interchangeability without modifying the installation site.

FAQ

What is the ingress protection rating?

The enclosure is rated IP65 and NEMA 12, protecting against dust and dripping non-corrosive liquids.

What material is the enclosure made of?

It is constructed from steel with a gray finish.
