A24H2010SS6LP3PT

Overview

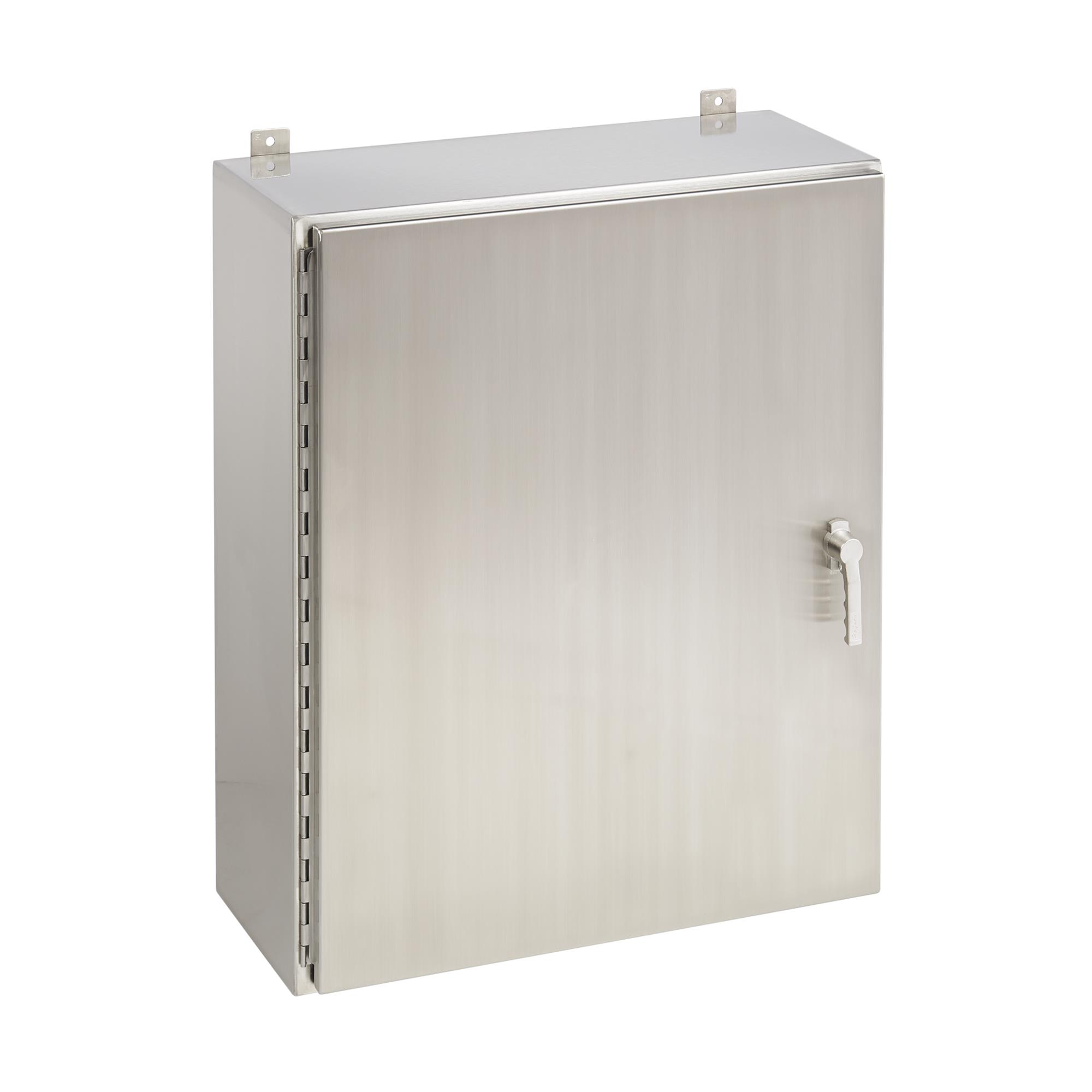

The Hoffman A24H2010SS6LP3PT is a wall-mount enclosure constructed from Type 316L stainless steel with a brushed finish. It measures 24.00 inches in height, 20.00 inches in width, and 10.00 inches in depth. The unit features a continuous hinge door and utilizes the PowerGlide handle mechanism with three-point latching. It holds an IP66 and NEMA Type 4X rating, ensuring protection against corrosion, dust, and water ingress.

Feature Summary

• Constructed from Type 316L stainless steel for superior corrosion resistance
• Equipped with a continuous hinge and exclusive PowerGlide handle
• Features a robust three-point latching system for secure closure
• Provides IP66 and NEMA Type 4X environmental protection ratings

Applications

• Indoor industrial environments requiring high corrosion resistance
• Outdoor installations exposed to harsh weather conditions
• Applications involving chemical exposure or washdown procedures
• Marine or coastal equipment housing

Procurement Notes

Verify that the specific requirement for Type 316L stainless steel matches the application's corrosion needs, as this material differs from standard 304 grades. Confirm that the 24x20x10 inch internal dimensions accommodate all components with adequate clearance. Ensure the mounting surface supports the weight of the stainless steel enclosure. Check that the three-point latch mechanism aligns with operational access requirements.

Selection Notes

Select this model when standard galvanized steel enclosures fail to withstand corrosive environments. The Type 316L material offers enhanced durability compared to 304 stainless steel. The continuous hinge design improves longevity by distributing stress across the entire door edge. The three-point latch provides superior sealing integrity compared to single-latch designs, making it suitable for demanding NEMA Type 4X applications.

Part Context

This component belongs to the Hoffman A24 series of wall-mount enclosures. It is part of a broader lineup designed for industrial control and protection. The series includes various sizes and materials, with this specific model representing the heavy-duty stainless steel option. It complements accessories such as DIN rails and mounting plates available within the same product family.

Replacement Considerations

Direct substitutes include other Hoffman Type 4X stainless steel enclosures with identical external dimensions. Verify compatibility if replacing units with different latch mechanisms, as the PowerGlide handle may affect door swing clearance. Ensure any alternative maintains the IP66 rating and 316L material specification for equivalent performance.
