A806CHFTC

Overview

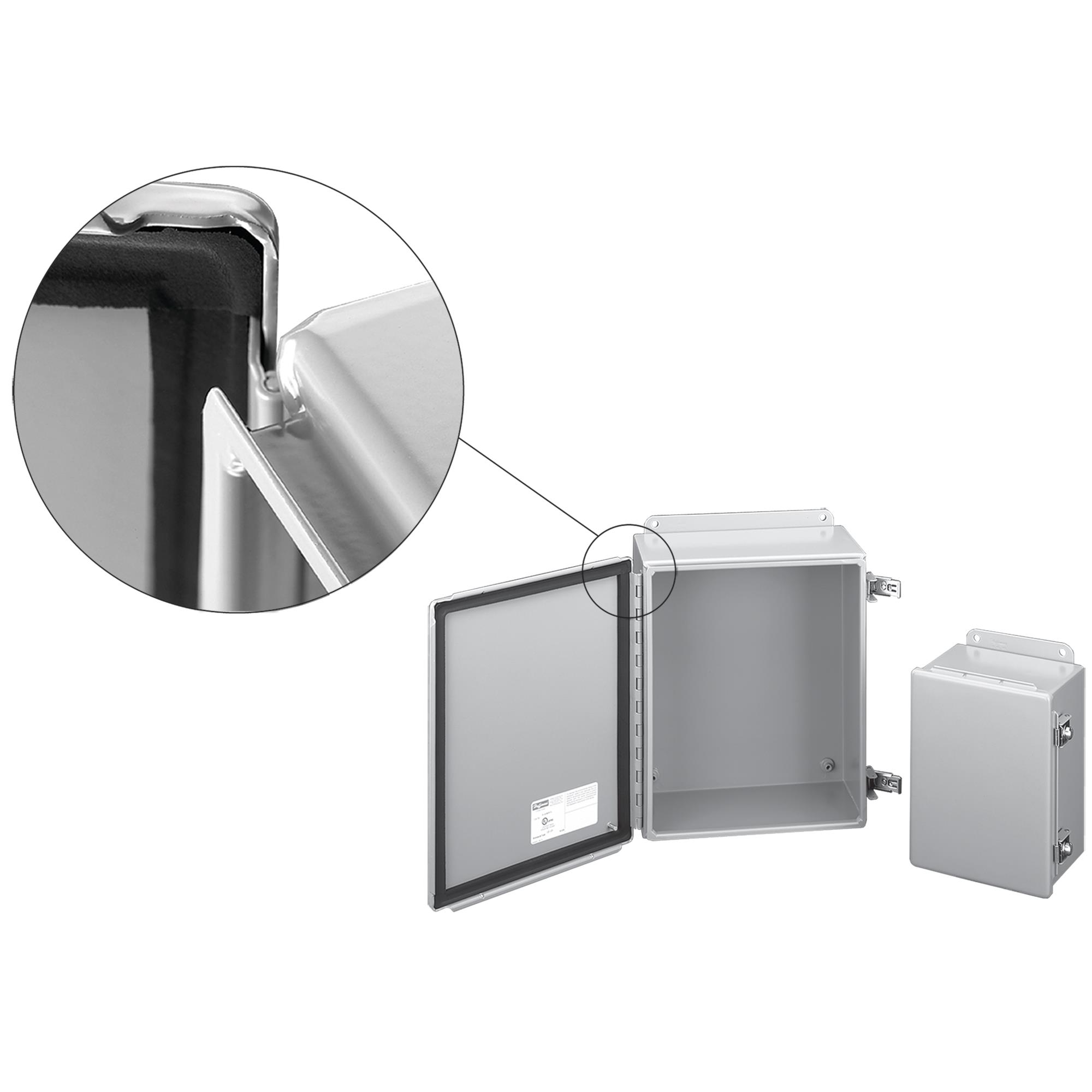

The Hoffman Enclosures A806CHFTC is a metallic junction box constructed from steel with a gray finish. It features a continuous hinged cover secured by a latch requiring a tool for operation. The enclosure measures 8 inches in height, 6 inches in width, and approximately 4.5 to 4.75 inches in depth. It provides environmental protection rated at NEMA 12 and IP65 standards, ensuring resistance to dust and water ingress.

Feature Summary

• Continuous hinge design for durable and consistent cover movement
• Flange trough collar configuration to exclude liquids and contaminants
• Tool-required latch mechanism for enhanced security

Applications

• Automotive industry applications requiring external flange trough collars
• Environments demanding protection against liquid ingress
• Industrial settings necessitating resistance to dust and contaminants

Procurement Notes

Verify the specific depth dimension (4.5 vs 4.75 inches) against project requirements due to conflicting data sources. Confirm that the tool-required latch meets site security protocols. Ensure the NEMA 12/IP65 rating aligns with the environmental conditions of the installation location before finalizing procurement.

Selection Notes

Select this model when an outward-formed external flange trough collar is necessary to manage liquids and contaminants effectively. The continuous hinge offers superior durability compared to quarter-turn latches. Consider the steel construction and gray finish for general industrial compatibility where high corrosion resistance is not the primary driver.

Part Context

This component belongs to the Hoffman Enclosures line of metallic junction boxes. It is designed for applications where standard enclosures are insufficient for managing external fluid exposure. The flange trough collar distinguishes it from standard flat-back or deep enclosures, providing a specialized barrier for harsh environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify dimensional compatibility if replacing existing units, as the depth variation requires precise measurement of the mounting space.
