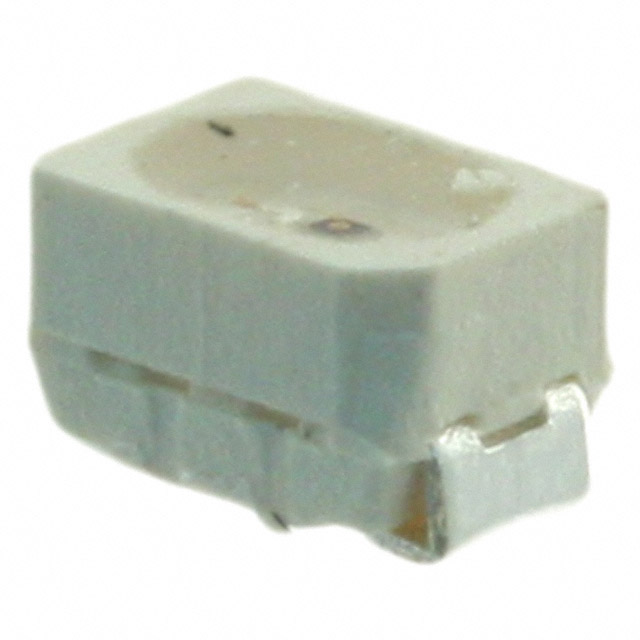

AA2214ZGS is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for AA2214ZGS
- Description：LED GREEN CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：700mcd
- Lens Style：Oval with Flat Top
- Lens Size：1.65mm x 1.15mm
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：525nm
- Wavelength - Peak：515nm
- Features：-
- Package / Case：2-SMD, J-Lead
- Supplier Device Package：SMD
- Size / Dimension：2.00mm L x 1.40mm W
- Height (Max)：1.40mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for AA2214ZGS
LED Indication - Discrete Overview
The AA2214ZGS is a single-color green surface-mount LED from Kingbright, designed for indicator applications. It features a water-clear oval lens with dimensions of 2.2 mm in length, 1.4 mm in width, and 1.3 mm in height. The device emits light at a peak wavelength of 570 nm with a viewing angle of 120 degrees. Electrical characteristics include a forward voltage of 2.5 V and a maximum power rating of 75 mW at a forward current of 20 mA. The optical intensity is rated at 100 mcd. It operates within a temperature range of -40°C to +85°C.
LED Indication - Discrete Feature Summary
- Utilizes an oval-shaped water-clear lens to provide a wide 120-degree viewing angle for enhanced visibility.
- Constructed as a compact surface-mount device suitable for automated assembly processes.
- Complies with RoHS standards for environmental safety.
LED Indication - Discrete Applications
- Panel indicators
- Status lights
- Instrumentation displays
LED Indication - Discrete Procurement Notes
Verify the specific suffix against official Kingbright documentation to confirm exact binning and optical specifications. Ensure compatibility with standard SMD reflow profiles and observe moisture sensitivity handling requirements during storage and assembly.
LED Indication - Discrete Selection Notes
Select this component when a low-profile green indicator is required for space-constrained designs. Consider the 120-degree viewing angle and 100 mcd intensity for general status indication where high brightness is not critical.
LED Indication - Discrete Part Context
This part belongs to the AA2214 series of single-color LEDs manufactured by Kingbright. The series offers various color options and lens types in a standardized 0805 (2112 metric) package footprint, facilitating design flexibility across different product lines.
LED Indication - Discrete Replacement Considerations
Consult official Kingbright substitution guides for verified equivalents. Generic replacements may differ in luminous intensity or spectral distribution.
