AA3021LZGSK

Overview

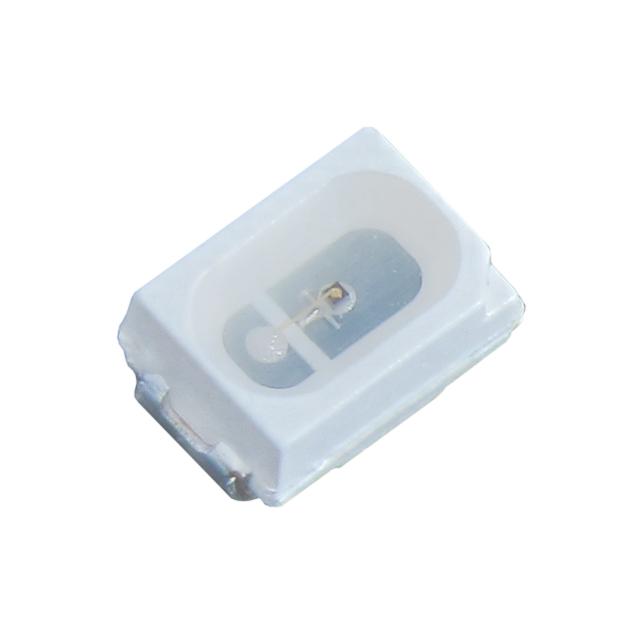

The AA3021LZGSK is a single-color surface-mount LED manufactured by Kingbright, designed for indicator applications. It features a green lens and utilizes InGaAlP material technology to emit light at a wavelength of 525 nm. The component operates with a forward voltage of 2.65 V and is housed in a compact 3.0 x 2.0 mm package with J-leads. This device offers low power consumption and is RoHS compliant, suitable for space-constrained electronic designs requiring reliable visual indication.

Feature Summary

• Compact 3.0 x 2.0 mm surface-mount form factor
• Green optical output with 525 nm wavelength
• Low power consumption design
• RoHS compliant construction

Applications

• Electronic equipment status indicators
• Control panel illumination
• Consumer appliance signaling
• Industrial machine operation lights

Procurement Notes

Verify the specific ordering suffix to ensure the correct lead frame configuration and bin selection match your assembly requirements. Confirm that the 2000-piece reel quantity aligns with your production volume needs. Ensure compatibility with standard SMT reflow profiles as specified in the manufacturer's datasheet. Check for any regional compliance certifications required for your target market before finalizing the order.

Selection Notes

Select this component when a small footprint is critical for PCB layout density. The 525 nm green emission provides high visibility for general status indication. Consider the 2.65 V forward voltage drop when designing the driving circuit to ensure proper current limiting. Verify that the J-lead package style is compatible with your pick-and-place equipment capabilities.

Part Context

This part belongs to Kingbright's series of ultra-bright SMD LEDs utilizing InGaAlP materials. The 3020 metric package size represents a standard industry dimension for low-profile surface-mount lighting solutions. It is distinct from through-hole variants and larger SMD packages, offering a balance between brightness and physical size for modern electronics.

Replacement Considerations

Direct substitutes must match the 3020 package dimensions, green wavelength, and electrical characteristics. Verify pinout compatibility and thermal management requirements for equivalent components from other manufacturers.
