AA3527ASYS/J3-50MAV

$0.67

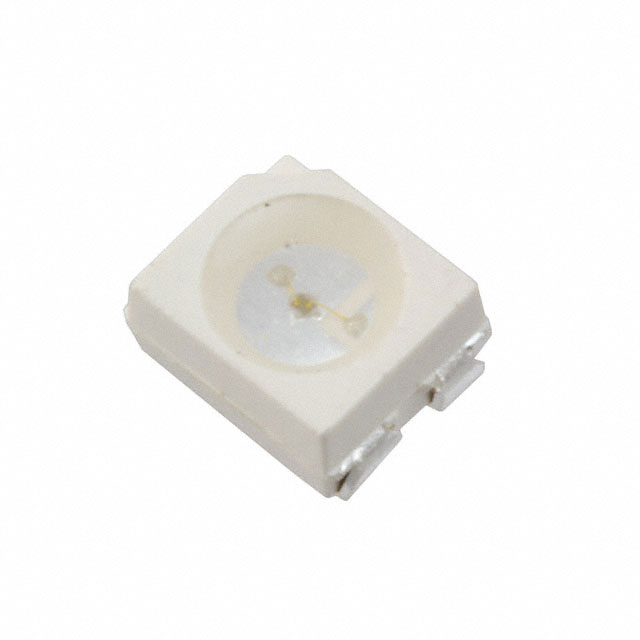

Description：LED YELLOW CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ea7240cf9f89 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA3527ASYS/J3-50MAV is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED YELLOW CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA3527ASYS/J3-50MAV

Description：LED YELLOW CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1600mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.3V
Current - Test：50mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：590nm
Wavelength - Peak：590nm
Features：-
Package / Case：4-SMD, J-Lead
Supplier Device Package：4-SMD
Size / Dimension：3.20mm L x 2.70mm W
Height (Max)：1.90mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA3527ASYS/J3-50MAV

AA3527ASYS/J3-50MAV

LED Indication - Discrete Overview

The AA3527ASYS/J3-50MAV is a single-color yellow surface-mount LED manufactured by Kingbright. It features a 4-SMD, J-leaded package with dimensions of 3.20 mm in length, 2.70 mm in width, and a maximum height of 2.15 mm. The component emits light at a peak wavelength of 590 nm with a water-clear, round flat lens. It operates with a forward current of 50 mA and a typical forward voltage of 2.3 V. The device provides a luminous intensity of 1500 mcd and offers a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

Utilizes a 4-SMD J-leaded package design for surface mount assembly
Features a water-clear lens with a round flat shape to optimize light transmission
Provides high luminous intensity output suitable for indicator applications

LED Indication - Discrete Applications

Electronic equipment status indicators
Panel board illumination
General purpose signal indication

LED Indication - Discrete Procurement Notes

Verify the exact suffix against the manufacturer datasheet to confirm electrical characteristics such as forward voltage and luminous intensity. Ensure compatibility with surface mount reflow soldering processes. Check moisture sensitivity level requirements for storage and handling procedures prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a compact SMD form factor with J-leads is required for space-constrained designs. Consider the specific yellow wavelength and high brightness output relative to alternative colors. Evaluate the thermal management capabilities within the target operating temperature range of -40 C to +85 C.

LED Indication - Discrete Part Context

This part belongs to Kingbright's series of single-color surface-mount LEDs designed for general lighting and indication purposes. The 3527 metric footprint allows for dense PCB layouts while maintaining reliable electrical connections through the J-shaped terminal configuration.
