Product Detailed Parameters
- Description：LED PURPLE CLEAR SMD
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR)
- Color：Purple
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：100mcd
- Lens Style：Round with Flat Top
- Lens Size：2.40mm Dia
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：2-PLCC
- Supplier Device Package：SMD
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：2.10mm
- Grade：-
- Qualification：-
Download product information
Overview

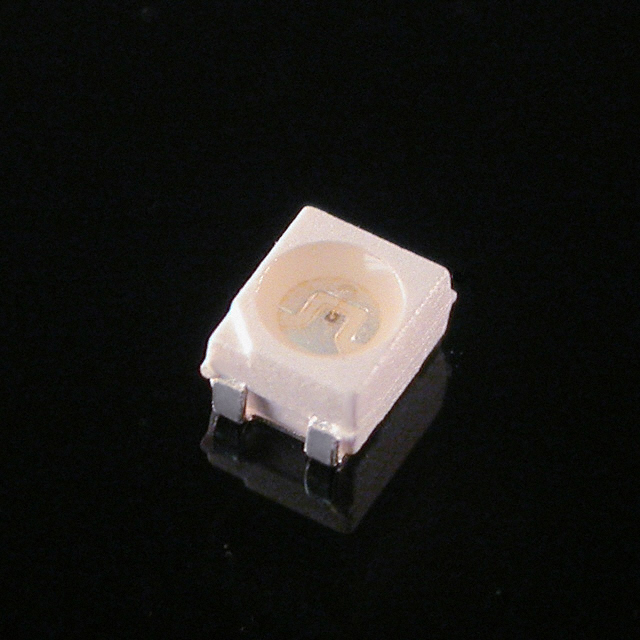

Kingbright AA3528APR7C/A is a purple discrete surface-mount LED with a clear water-clear lens. It operates at a typical forward voltage of 3.2V and a test current of 20mA, producing 100mcd luminous intensity. The component features a 120-degree viewing angle and measures 3.20mm x 2.80mm x 2.10mm in a 2-PLCC package. It complies with RoHS3 standards and has a moisture sensitivity level of 4.
Feature Summary
- Purple light emission with a standard configuration
- Water-clear round flat lens design
- Surface-mount 2-PLCC package for automated assembly
Applications
- Electronic device status indicators
- Panel mount signaling lights
- Consumer electronics visual alerts
Procurement Notes
Verify the obsolete status carefully as this part is officially discontinued by Kingbright. Confirm availability through authorized distributors or secondary markets only. Ensure replacement components match the 2-PLCC footprint and electrical characteristics to maintain circuit integrity during retrofitting.
Selection Notes
Select this component when a specific purple indicator color is required for visual signaling. Consider the 3.2V forward voltage drop for power supply calculations. Evaluate the 100mcd intensity against ambient lighting conditions to ensure adequate visibility for the intended application environment.
Part Context
This model belongs to the Kingbright 3528 SMD LED family, designed for high-volume surface-mount technology processes. It utilizes InGaN semiconductor materials to generate purple light. The product adheres to environmental compliance standards including RoHS3 and REACH regulations for global market distribution.
Replacement Considerations
- AA3528SURSK
FAQ
What is the peak wavelength for this purple LED?
The datasheet specifies the color as purple but does not explicitly list a numerical peak wavelength value in the provided documentation.
Is this component suitable for high-temperature environments?
Yes, the component supports an operating temperature range from -40°C to +85°C.
