AA3528ASECK

LED Indication - Discrete Overview

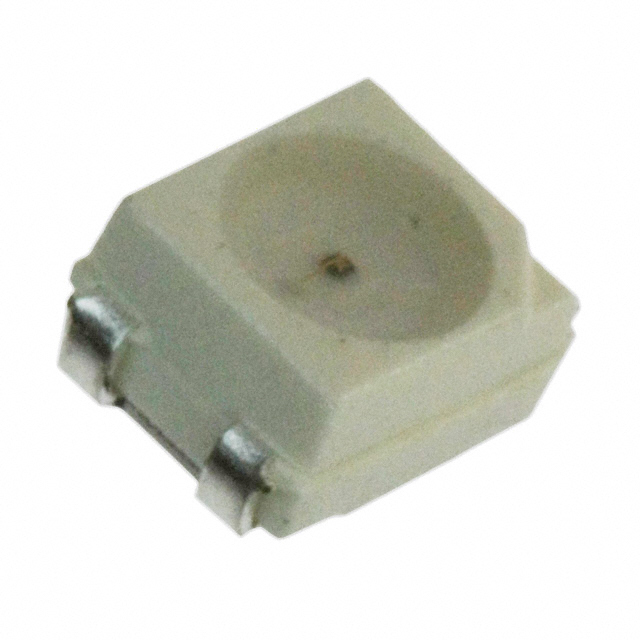

The Kingbright AA3528ASECK is a single-color orange surface-mount LED in a 2-PLCC package. It features a water clear lens with a round flat shape and emits light at a peak wavelength of 610 nm. The component operates with a typical forward voltage of 2.1 V at a test current of 20 mA, delivering a luminous intensity of 300 mcd. It has a viewing angle of 120 degrees and measures 3.2 mm in length, 2.8 mm in width, and 2.15 mm in maximum height.

LED Indication - Discrete Feature Summary

• Utilizes AlGaInP on GaAs substrate for high-brightness orange emission
• Water clear lens design enhances light transmission efficiency
• RoHS compliant construction suitable for environmentally regulated assemblies

LED Indication - Discrete Applications

• Backlighting applications
• Panel indicator lights
• Electronic status displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'SECK' against manufacturer documentation to confirm the exact optical and electrical characteristics. Ensure compatibility with moisture sensitivity level requirements during storage and reflow soldering processes. Confirm availability status as product lifecycle stages may affect long-term supply continuity.

LED Indication - Discrete Selection Notes

Select this component when a standard 3528 form factor is required for orange indication. Consider the 2.1 V forward voltage drop for circuit design calculations. Evaluate the 300 mcd intensity against visibility requirements for the intended application environment.

LED Indication - Discrete Part Context

This part belongs to the Kingbright AA3528 series of surface-mount LEDs. The series offers various color options within a consistent 3.2 x 2.8 mm package footprint. The AA3528ASECK specifically provides an orange variant optimized for general indication tasks.

LED Indication - Discrete Replacement Considerations

AA3528SECK
