AA3528SESK

LED Indication - Discrete Overview

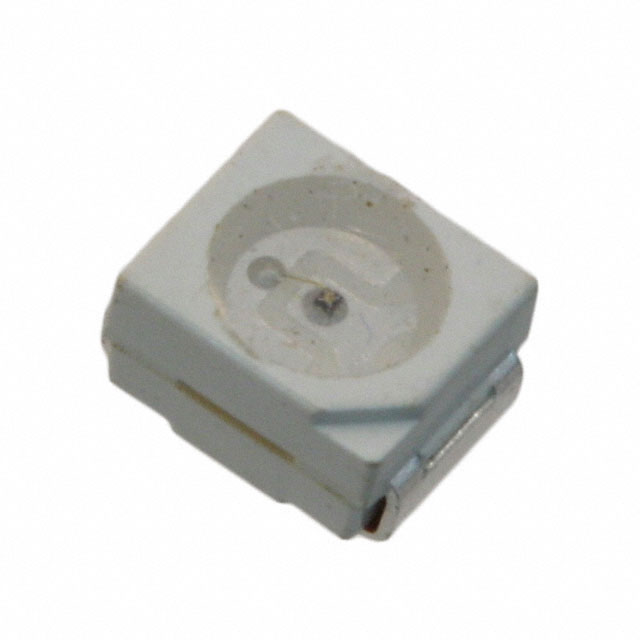

The AA3528SESK is a single-color surface-mount LED manufactured by Kingbright, housed in a 3.5 x 2.8 mm package with a total height of 1.8 mm. It emits super bright orange light at a peak wavelength of 601 nm with a water clear lens. The device features a nominal luminous intensity of 350 mcd and operates within a temperature range of -40 °C to 85 °C. It supports a maximum forward current of 0.03 A and is supplied in tape and reel packaging.

LED Indication - Discrete Feature Summary

• Surface mount construction for automated assembly
• Water clear lens design for optimized light transmission
• Single element configuration for simple circuit integration

LED Indication - Discrete Applications

• Indicator lighting in electronic devices
• Status indication on control panels
• General purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against official Kingbright documentation to ensure correct color binning and lens type specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact orange indicator is required for surface-mounted designs. Ensure the operating environment stays within the specified thermal limits and that the drive current does not exceed the maximum rated forward current to maintain reliability.

LED Indication - Discrete Part Context

This part belongs to Kingbright's standard SMD LED lineup, utilizing the common 3528 metric footprint. It provides a reliable solution for space-constrained applications requiring distinct color identification without through-hole mounting requirements.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult Kingbright directly for cross-reference recommendations.
