AA3528SURCK

LED Indication - Discrete Overview

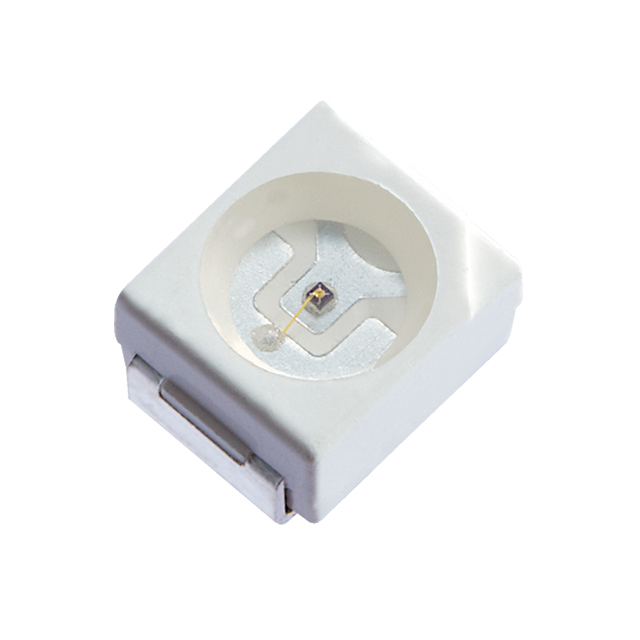

The AA3528SURCK is a single-color red surface-mount LED manufactured by Kingbright. It utilizes a PLCC-2 package with dimensions of 3.5 mm length, 2.8 mm width, and 1.9 mm height. The device emits light at a peak wavelength of 630 nm with a viewing angle of 120 degrees. Key electrical parameters include a forward current of 20 mA and a typical forward voltage of 1.95 V. Optical performance specifies an intensity of 200 mcd. The component operates within a temperature range of -40°C to +85°C and features a water-clear lens.

LED Indication - Discrete Feature Summary

• Emits hyper-bright red light through a water-clear lens for high visibility
• Designed for standard SMD assembly processes with moisture sensitivity level 3
• Constructed using InGaAlP on GaAs substrate technology

LED Indication - Discrete Applications

• General indicator lighting in electronic equipment
• Panel status indication devices
• Consumer electronics display modules

LED Indication - Discrete Procurement Notes

Verify the specific manufacturer part number against official Kingbright documentation to ensure accuracy. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Check for any recent product change notices that may affect packaging or material specifications. Ensure handling procedures account for electrostatic discharge sensitivity during storage and assembly.

LED Indication - Discrete Selection Notes

Select this component when a standard 3528 metric footprint is required for red indication. Consider the 120-degree viewing angle and 200 mcd intensity for general visibility needs. Verify that the 20 mA forward current rating aligns with the target circuit design. Ensure the operating temperature range meets the environmental conditions of the final application.

LED Indication - Discrete Part Context

This component belongs to the KA-3528 series of surface-mount LEDs from Kingbright. It shares physical dimensions with other variants in the 3528 family but differs in optical output and color. The part is distinct from multi-color versions like the AAA3528 series due to its single-element configuration.
