AA3528SYCKT/J3

LED Indication - Discrete Overview

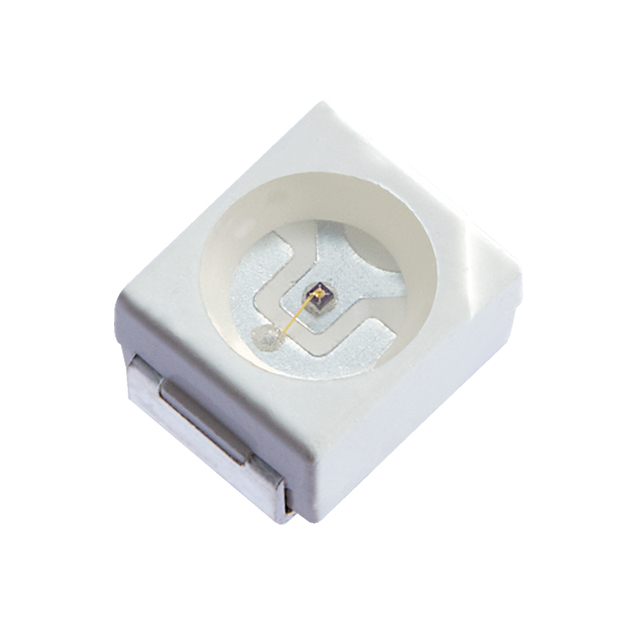

The Kingbright AA3528SYCKT/J3 is a single-color yellow surface-mount LED in the KA-3528 series. It emits light at a peak wavelength of 590 nm with a typical forward voltage of 2 V and a test current of 20 mA. The component features a water clear lens with a round flat shape, providing a viewing angle of 120 degrees. Physical dimensions are 3.20 mm in length, 2.80 mm in width, and a maximum height of 2.15 mm. It operates within a temperature range of -40 °C to +85 °C and holds RoHS3 compliance.

LED Indication - Discrete Feature Summary

• Emits yellow light at a 590 nm peak wavelength
• Features a water clear lens for high transparency
• Provides a wide 120-degree viewing angle
• Designed for standard surface mount assembly

LED Indication - Discrete Applications

• General indicator lighting
• Discrete electronic signaling
• Panel status indication

LED Indication - Discrete Procurement Notes

Verify the specific suffix J3 against official Kingbright documentation to confirm packaging details and exact physical tolerances. Ensure compatibility with existing PCB footprints designed for the 3528 metric package. Confirm moisture sensitivity level requirements during storage and handling procedures prior to soldering.

LED Indication - Discrete Selection Notes

Select this component when a yellow indicator with a 120-degree visibility range is required. The 2V forward voltage suits low-voltage logic circuits. Verify that the 2.15 mm maximum height fits within the mechanical constraints of the target enclosure. Ensure the operating temperature range meets the environmental demands of the final application.

LED Indication - Discrete Part Context

This part belongs to the Kingbright KA-3528 series of single-color LEDs. The series utilizes a standard 3528 metric SMD package format. The product line offers various colors and intensities within the same physical footprint to simplify supply chain management and PCB design consistency across different product variants.

LED Indication - Discrete Replacement Considerations

Consult official Kingbright substitution guides for verified equivalents. Cross-reference electrical parameters such as forward voltage and luminous intensity before replacing.
