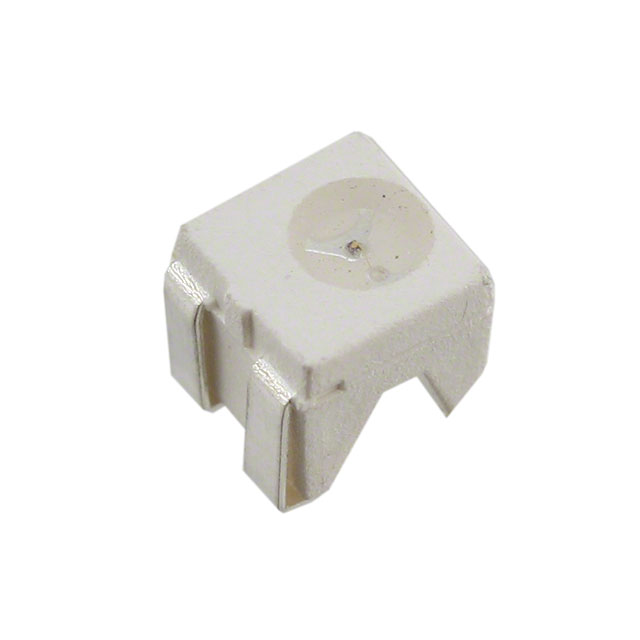

AA4040CGSK

$0.50

Description：LED GREEN CLEAR SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3c816acb3c92 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AA4040CGSK is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AA4040CGSK

Description：LED GREEN CLEAR SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：90mcd
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：570nm
Wavelength - Peak：574nm
Features：-
Package / Case：2-SMD, Boomerang
Supplier Device Package：SMD
Size / Dimension：4.00mm L x 3.60mm W
Height (Max)：4.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AA4040CGSK

AA4040CGSK

LED Indication - Discrete Overview

The AA4040CGSK is a single-color surface-mount LED manufactured by Kingbright, featuring a green light emission with a peak wavelength of 574 nm. It utilizes a water-clear lens and operates at a maximum forward current of 30 mA. The component has a nominal luminous intensity of 90 mcd and a power rating of 75 mW. It supports surface mount installation in a tape and reel package configuration.

LED Indication - Discrete Feature Summary

Emits green light with a peak wavelength of 574 nm
Features a water-clear dome-shaped lens for optical clarity
Supports surface mount technology for automated assembly

LED Indication - Discrete Applications

Indicator lights in electronic devices
Status display on control panels
General-purpose illumination in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number AA4040CGSK against official Kingbright documentation to ensure accuracy. Confirm that the specified electrical parameters, including the 30 mA maximum forward current and 574 nm peak wavelength, align with the design requirements. Check for RoHS compliance status and moisture sensitivity level details prior to procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard green indicator with a 120-degree viewing angle. Ensure the circuit design accommodates the specific forward voltage characteristics associated with green LEDs in this series. Verify compatibility with the PLCC-2 package dimensions and surface mount mounting style for PCB integration.

LED Indication - Discrete Part Context

This component belongs to the AA4040 series of single-color LEDs from Kingbright. The series offers various color options and packaging configurations suitable for surface mount applications. The AA4040CGSK specifically provides green emission characteristics within this standardized form factor.
