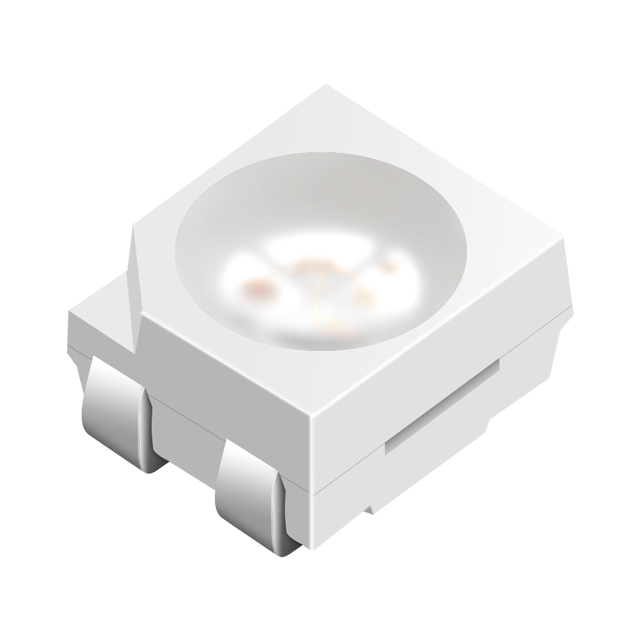

AAA3528BGRS/129/C3

$0.43

Description：3.5X2.8MM RGB PLCC4 SMD LED
Series：-
Mfr：Kingbright
Package：Bulk

SKU:e1f00daf7784 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AAA3528BGRS/129/C3 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 3.5X2.8MM RGB PLCC4 SMD LED. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AAA3528BGRS/129/C3

Description：3.5X2.8MM RGB PLCC4 SMD LED
Series：-
Mfr：Kingbright
Package：Bulk
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：220mcd Red, 1600mcd Green, 330mcd Blue
Lens Style：Round with Flat Top
Lens Size：2.40mm Dia
Voltage - Forward (Vf) (Typ)：2V Red, 3.2V Green, 3.3V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：621nm Red, 525nm Green, 470nm Blue
Wavelength - Peak：630nm Red, 520nm Green, 465nm Blue
Features：-
Package / Case：4-PLCC
Supplier Device Package：4-PLCC
Size / Dimension：3.20mm L x 1.30mm W
Height (Max)：2.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AAA3528BGRS/129/C3

AAA3528BGRS/129/C3

LED Indication - Discrete Overview

The AAA3528BGRS/129/C3 is a surface-mount RGB LED from Kingbright, housed in a 3.5x2.8mm package. It integrates Red, Green, and Blue emitters with wavelengths of 621 nm, 525 nm, and 470 nm respectively. The device features a 120-degree viewing angle and water-clear lens. Electrical parameters include forward currents of 20 mA per color, with forward voltages of 2 V for Red and 3.2 V to 3.3 V for Green and Blue. Power ratings are 75 mW for Red and 120 mW for Green and Blue. Light intensities are specified as 200 mcd, 1600 mcd, and 330 mcd. Operating temperatures range from -40 C to +85 C.

LED Indication - Discrete Feature Summary

Integrates three distinct semiconductor chips for independent control of red, green, and blue light sources.
Utilizes InGaAlP technology for the red emitter and InGaN technology for the green and blue emitters.
Features a common anode configuration allowing for simplified circuit design in multi-color applications.

LED Indication - Discrete Applications

Status indicators requiring full-color capability
Backlighting for electronic displays
Decorative lighting modules

LED Indication - Discrete Procurement Notes

Verify the specific suffix /129/C3 against the manufacturer's current datasheet to confirm exact binning and optical characteristics. Ensure handling procedures account for moisture sensitivity level 4 requirements during storage and reflow soldering processes.

LED Indication - Discrete Selection Notes

Select this component when a compact 3.5x2.8mm footprint is required for RGB indication. Consider the common anode structure for compatibility with existing driver circuits. Verify that the 120-degree viewing angle meets the visibility requirements of the target application.

LED Indication - Discrete Part Context

This part belongs to Kingbright's HeliColour series of multi-color LEDs. It shares the standard SMD form factor with other components in the 3528 metric family, facilitating automated assembly processes while providing versatile color mixing capabilities through individual chip control.
