AAA3528SURKCGKCT

Overview

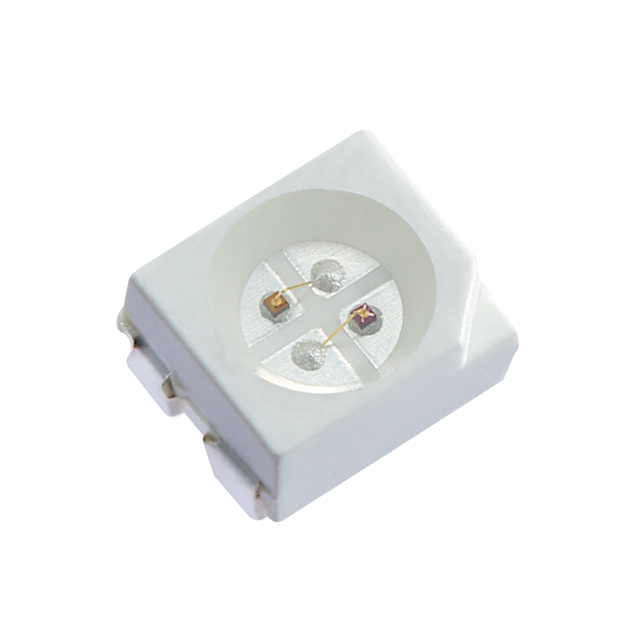

The Kingbright AAA3528SURKCGKCT is a surface-mount bi-color LED featuring red and green emission within a 1411 (3528 metric) package. It utilizes a water-clear, round-flat lens with a 120-degree viewing angle. The device operates at a forward current of 20 mA and withstands temperatures from -40°C to +85°C. Dimensions are 3.5 mm in length, 2.8 mm in width, and 1.9 mm in height.

Feature Summary

• Dual-chip bi-color configuration for independent red and green signaling
• Water-clear lens design ensures high light transmission efficiency
• Standardized 1411 SMD footprint compatible with automated assembly processes

Applications

• Electronic equipment status indication
• Power supply unit signal lamps
• Control panel interface lighting

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm RoHS compliance status and moisture sensitivity level prior to soldering. Ensure storage conditions meet specified humidity requirements to prevent package degradation during handling and reflow processes.

Selection Notes

Select this component when dual-color indication is required in space-constrained designs. The 1411 form factor supports standard pick-and-place equipment. Verify circuit compatibility with the specific forward voltage characteristics of the red and green chips to ensure proper current limiting and operational stability.

Part Context

This part belongs to Kingbright's multi-color LED portfolio, designed for compact electronic assemblies. It serves as a visual indicator solution where distinct color states are necessary. The series emphasizes reliability and standardized mounting dimensions for widespread industrial adoption.

Replacement Considerations

The KAA-3528SURKCGKCT is documented as an alias for this component. Cross-reference mechanical footprints and electrical parameters before substituting with other bi-color LEDs.
