AB-26.000MAGE-T

Crystals Overview

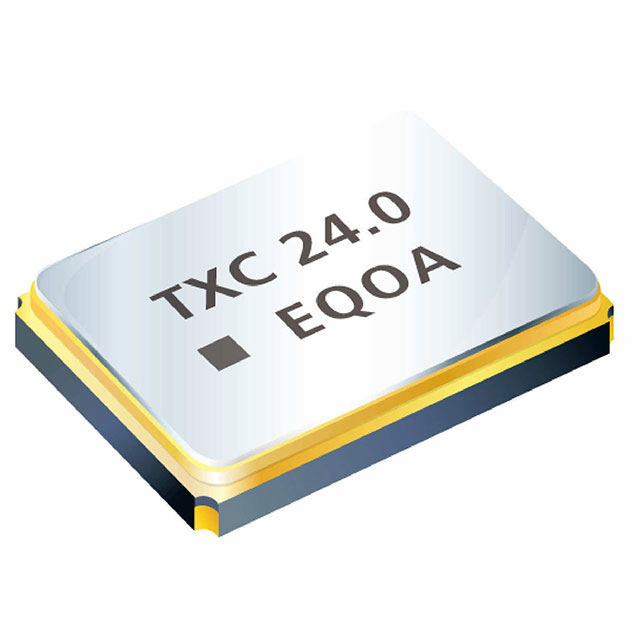

The AB-26.000MAGE-T is a quartz crystal manufactured by TXC Corporation, designed for surface-mount applications. It operates at a fundamental frequency of 26 MHz with a load capacitance of 12 pF. The component features a frequency tolerance of ±30 ppm and stability of ±50 ppm across an operating temperature range of -40°C to +85°C. It is housed in a 5.0 mm x 3.2 mm SMD package and holds AEC-Q200 automotive qualification.

Crystals Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• Surface-mount design for automated assembly
• Fundamental mode operation

Crystals Applications

• Automotive electronic timing circuits
• Microcontroller clock sources
• Communication interface synchronization

Crystals Procurement Notes

Verify the specific suffix 'G' against the official TXC datasheet to confirm packaging details and any minor specification variations. Ensure the required load capacitance matches the circuit design, as this model specifies 12 pF. Confirm that the 5.0x3.2 mm footprint aligns with the PCB layout constraints before finalizing procurement orders.

Crystals Selection Notes

Select this component when automotive-grade reliability is required alongside a 26 MHz fundamental frequency. The 12 pF load capacitance distinguishes it from other variants like the AV series which may use 8 pF. Consider the larger 5.0x3.2 mm package size compared to smaller 3.2x2.5 mm alternatives if space permits.

Crystals Part Context

This part belongs to the TXC crystal portfolio, specifically tailored for robust timing applications. It complements other series such as the AV and 7V lines, offering distinct physical dimensions and load capacitance options to suit diverse board designs and electrical requirements within the same frequency band.

Crystals Replacement Considerations

Direct substitutes include the AV-26.000MAGV-T, though it utilizes an 8 pF load capacitance and a smaller 3.2x2.5 mm package. The 7V-26.000MAAE-T offers similar electrical parameters but differs in package size and temperature range. Verify compatibility before substitution.
