AC-50.000MBE-T

Oscillators Overview

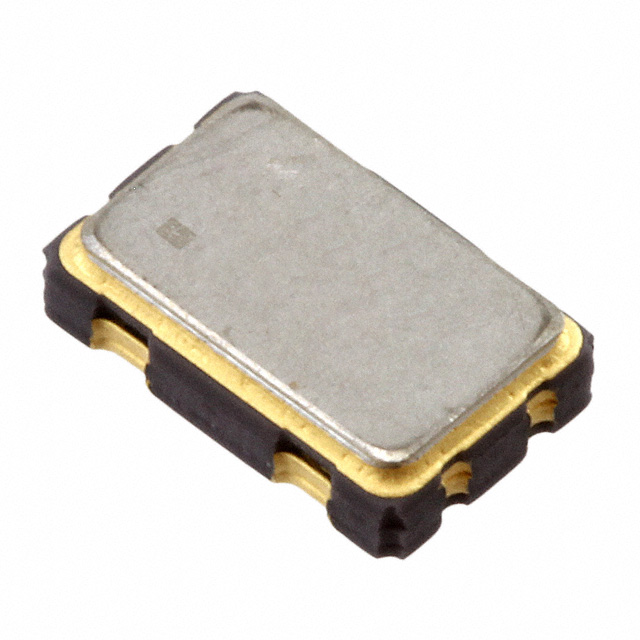

The AC-50.000MBE-T is a standard clock oscillator manufactured by TXC Corporation, operating at a frequency of 50 MHz with a stability of ±50 ppm. It supports a supply voltage range from 2.5 V to 3.3 V and features CMOS output format. The component is housed in a 4-SMD, no-lead package measuring 3.2 mm x 2.5 mm. It operates within a temperature range of -40°C to +85°C and includes an enable/disable function. This device is designed for surface-mount applications requiring precise timing signals.

Oscillators Feature Summary

• Provides stable 50 MHz clock signal generation
• Supports CMOS output interface
• Includes enable/disable control functionality
• Operates across extended industrial temperature range

Oscillators Applications

• Standard clock distribution systems
• Digital signal processing circuits
• Microcontroller clock sources
• Communication interface timing

Oscillators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and check for obsolescence notices as the part may be discontinued. Ensure supply voltage requirements match system design specifications before procurement. Validate package dimensions against PCB footprint guidelines to ensure proper assembly compatibility.

Oscillators Selection Notes

Select this oscillator when CMOS output compatibility is required for downstream logic circuits. Consider the ±50 ppm stability specification against system jitter tolerance requirements. Evaluate the 4-SMD package size constraints against available board space. Verify that the 3.3V nominal supply voltage aligns with the target application power architecture.

Oscillators Part Context

This component belongs to TXC Corporation's standard oscillator product line, specifically designed for general-purpose timing applications. The AC series typically offers cost-effective solutions for consumer and industrial electronics. As a crystal-based oscillator, it provides reliable frequency generation without external resonator components.

Oscillators Replacement Considerations

Check for direct pin-compatible alternatives within the same series if availability is critical. Verify that substitute parts maintain identical CMOS output characteristics and supply voltage ranges. Cross-reference package dimensions to ensure mechanical interchangeability without PCB redesign.
