Product Detailed Parameters
- Description：LED RED SMD 45DEG
- Series：-
- Mfr：Broadcom Limited
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：-
- Configuration：-
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：-
- Lens Style：-
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：-
- Current - Test：-
- Viewing Angle：-
- Mounting Type：-
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：-
- Height (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

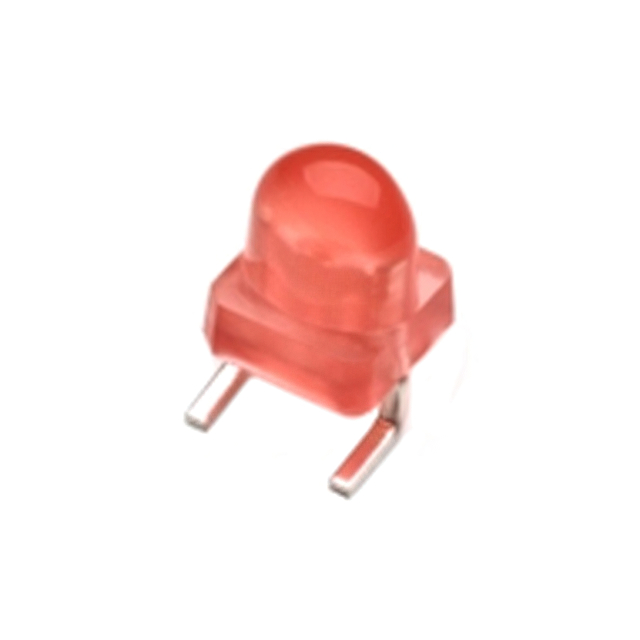

The AEMD-LG3K-XZ002 is a single-color surface-mount LED manufactured by Broadcom Limited. It emits red light with a wavelength of 621 nm and features an oval lens shape measuring 4.2 mm x 4.2 mm. The component has a diffused lens transparency and operates at a forward current of 20 mA with a forward voltage of 2.1 V. Its power rating is 120 mW, and it delivers a light intensity of 2.9 cd. The viewing angle is specified as 95 degrees by 45 degrees, suitable for applications requiring wide-area illumination.
Feature Summary
- Features an oval lens design with diffused transparency for wide-angle light distribution.
- Operates at a standard forward current of 20 mA with low forward voltage.
- Provides high luminous intensity within a compact surface-mount footprint.
Applications
- Panel indicator lights
- Status indication in electronic devices
- Low-cost SMT lighting solutions
Procurement Notes
Verify the specific ordering suffix to ensure correct lens color and beam angle specifications. Confirm RoHS compliance status through official documentation before integration. Check humidity sensitivity handling requirements during storage and assembly processes. Ensure supply chain availability aligns with production timelines.
Selection Notes
Select this component for applications requiring a wide viewing angle and diffused red illumination. Consider the 4.2 mm x 4.2 mm package size for space-constrained designs. Evaluate the 2.1 V forward voltage against available drive circuits. Compare light intensity requirements against the 2.9 cd specification.
Part Context
This part belongs to the AEMD series of single-color LEDs from Broadcom Limited. The series offers various lens shapes and colors optimized for surface-mount technology. Components in this family share common electrical characteristics but differ in optical properties and physical dimensions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer catalogs for direct equivalents with matching electrical and mechanical parameters.
