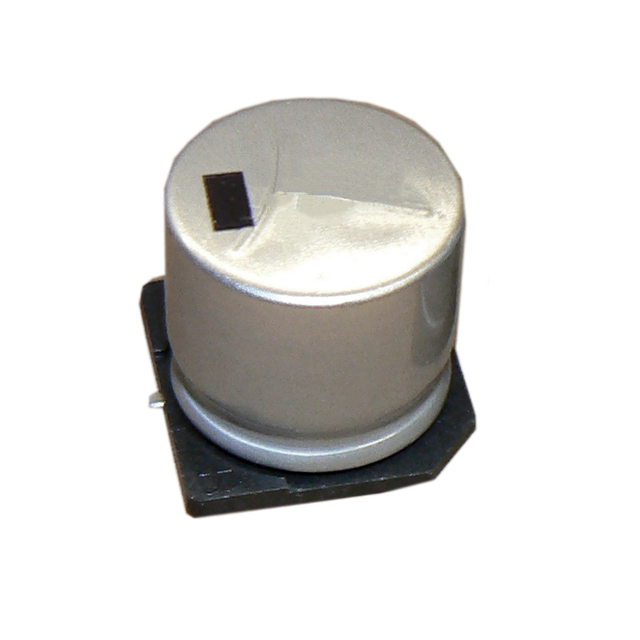

AFK476M50E16B-F

AFK476M50E16B-F is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Cornell Dubilier Knowles. Its product description is CAP ALUM 47UF 20% 50V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for AFK476M50E16B-F

• Description：CAP ALUM 47UF 20% 50V SMD
• Series：AFK
• Mfr：Cornell Dubilier Knowles
• Package：Bulk
• Capacitance：47 µF
• Tolerance：±20%
• Voltage - Rated：50 V
• ESR (Equivalent Series Resistance)：680mOhm @ 100kHz
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive, Bypass, Decoupling
• Ripple Current @ Low Frequency：146.2 mA @ 120 Hz
• Ripple Current @ High Frequency：195 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.256" (6.50mm)
• Surface Mount Land Size：0.327" L x 0.374" W (8.30mm x 9.50mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：680 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for AFK476M50E16B-F
