AIMC-06UHQ-1N6C-T

Fixed Inductors Overview

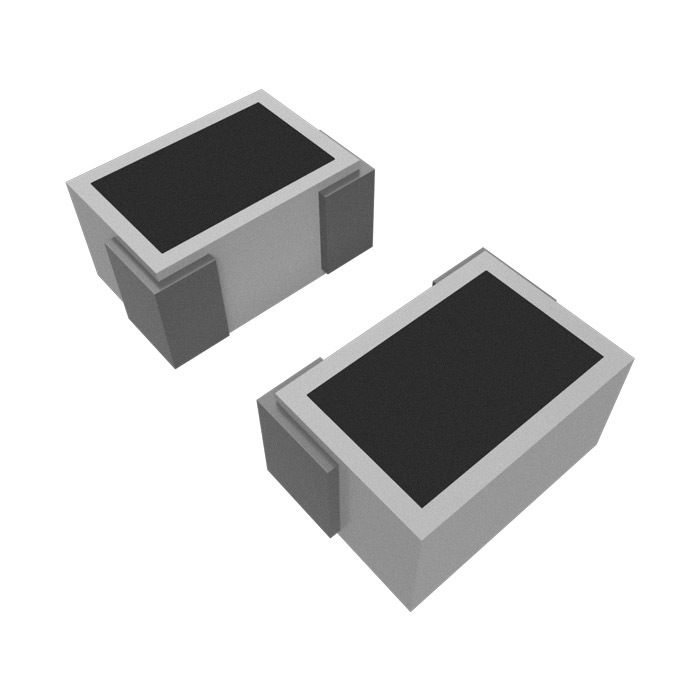

The AIMC-06UHQ-1N6C-T is a fixed multilayer RF inductor manufactured by Abracon LLC, designed for surface mount applications. It features an inductance of 1.6 nH with a tolerance of ±0.2 nH and operates within a frequency range up to a self-resonant frequency of 10 GHz. The component has a maximum DC resistance of 50 mΩ and supports a current rating of 1 A. Constructed with a non-shielded ceramic core, it is housed in a compact 0201 (0603 Metric) package measuring 0.6 mm in length, 0.3 mm in width, and 0.4 mm in height. It functions reliably across an operating temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

• Ultra-small form factor suitable for high-density PCB layouts
• High Q value and self-resonant frequency for RF signal integrity
• Non-shielded ceramic multilayer construction for thermal stability

Fixed Inductors Applications

• RF matching networks in wireless communication devices
• Impedance matching circuits in mobile handsets
• Filter components in ultra-wideband (UWB) systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to ensure correct tolerance and packaging configuration. Confirm that the selected variant matches the required current rating and impedance characteristics for the target circuit design. Cross-reference the part number with authorized distributor catalogs to validate authenticity and traceability before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when space constraints require a 0201 footprint with low inductance values. Ensure the application environment stays within the specified -55°C to 125°C operational range. Consider the non-shielded nature of the device regarding electromagnetic interference sensitivity in dense circuit layouts compared to shielded alternatives.

Fixed Inductors Part Context

This part belongs to the AIMC-06UHQ series from Abracon LLC, which specializes in ultra-small, high-Q RF ceramic multilayer inductors. The series is engineered for commercial, industrial, and automotive applications requiring precise RF performance in minimal footprints. These components are designed to support high-frequency operations typical in modern portable electronics and wireless infrastructure.

Fixed Inductors Replacement Considerations

AIMC-06UHQ-1N6S-T: Same inductance but different tolerance specification.

Fixed Inductors FAQ

Is the AIMC-06UHQ-1N6C-T shielded?

No, the component is explicitly listed as non-shielded in its specifications.

What is the maximum operating temperature for this inductor?

The maximum operating temperature is 125°C.
