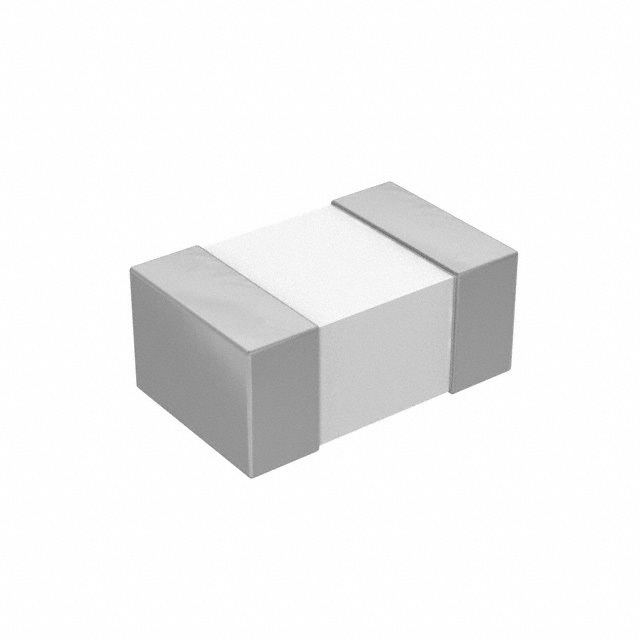

AIMC-0805-3N3S-T

$0.10

Description：FIXED IND 3.3NH 600MA 130MOHM SM
Series：AIMC-0805
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a7b0b1640f14 Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AIMC-0805-3N3S-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 3.3NH 600MA 130MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AIMC-0805-3N3S-T

Description：FIXED IND 3.3NH 600MA 130MOHM SM
Series：AIMC-0805
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ceramic
Inductance：3.3 nH
Tolerance：±0.3nH
Current Rating (Amps)：300 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：130mOhm Max
Q @ Freq：12 @ 100MHz
Frequency - Self Resonant：4GHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric)
Supplier Device Package：0805 (2012 Metric)
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)：0.041" (1.05mm)
Features：-

Fixed Inductors datasheet and documents for AIMC-0805-3N3S-T

AIMC-0805-3N3S-T

Fixed Inductors Overview

The AIMC-0805-3N3S-T is a fixed surface-mount inductor from the AIMC-0805 series manufactured by Abracon LLC. It features a nominal inductance of 3.3 nH with a tolerance of ±0.3 nH, constructed using a multilayer ceramic core. The component has a maximum DC resistance of 130 mOhm and a rated current of 300 mA. It operates within a temperature range of -55°C to 125°C and offers a self-resonant frequency of 10 GHz.

Fixed Inductors Feature Summary

Multilayer ceramic construction for stable RF performance
Ultra-low inductance value suitable for high-frequency applications
Surface-mount design optimized for automated PCB assembly

Fixed Inductors Applications

RF matching networks
High-frequency signal filtering
Impedance matching circuits

Fixed Inductors Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status prior to integration. Check for potential supply chain disruptions or end-of-life notices. Ensure storage conditions meet moisture sensitivity level requirements. Validate package dimensions against PCB footprint specifications.

Fixed Inductors Selection Notes

Select this component for ultra-low inductance requirements in RF designs. Consider the 300 mA current rating for power handling limits. Evaluate the 130 mOhm DCR impact on circuit efficiency. Compare self-resonant frequency against target operating bands. Assess thermal stability within the specified -55°C to 125°C range.

Fixed Inductors Part Context

This part belongs to the AIMC-0805 series of fixed inductors. It complements other low-inductance components like the AIMC-0603-1N2S-T. The series provides options for various inductance values in compact packages. It supports general commercial and industrial electronic applications requiring precise RF characteristics.
