AISC-Q0402-33NJ-T

Fixed Inductors Overview

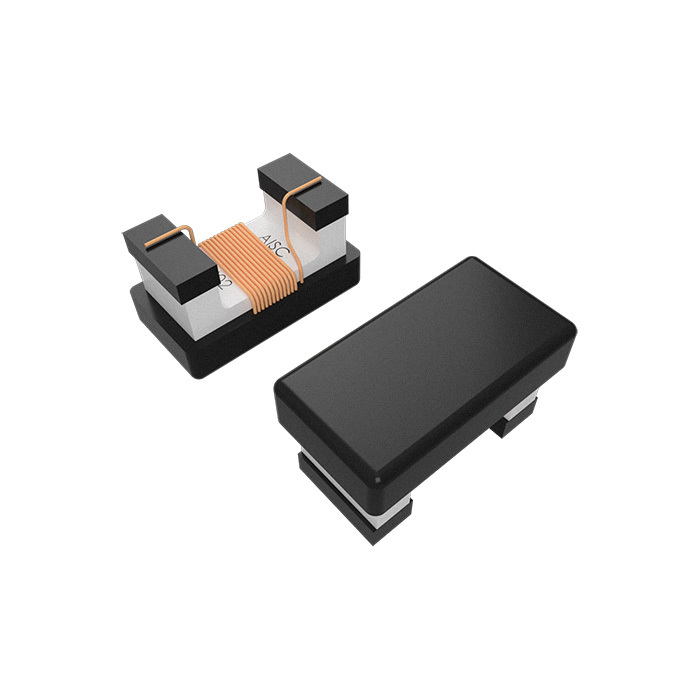

The AISC-Q0402-33NJ-T is a ceramic wirewound RF inductor from Abracon LLC, designed for surface-mount applications. It features an inductance of 33 nH with a tolerance of ±5%. The component operates within a temperature range of -40°C to +125°C and carries AEC-Q200 qualification. Key electrical parameters include a maximum DC resistance of 350 mΩ and a minimum Q factor of 24 at the test frequency. The physical dimensions are 1.27 mm in length, 0.76 mm in width, and 0.61 mm in height, housed in a standard 0402 package.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability standards
• High-temperature operation capability up to 125°C
• Unshielded ceramic wirewound construction

Fixed Inductors Applications

• Automotive RF circuits
• High-frequency signal filtering
• Impedance matching networks

Fixed Inductors Procurement Notes

Verify the specific suffix 'NJ' confirms the 5% tolerance variant when sourcing. Ensure the procurement documentation explicitly states AEC-Q200 compliance for automotive integration. Confirm the package dimensions match the 1.27mm x 0.76mm footprint required by the PCB layout. Cross-reference the manufacturer part number against authorized distributor lists to avoid counterfeit components.

Fixed Inductors Selection Notes

Select this component for designs requiring a 33 nH inductance in a compact 0402 footprint. It is suitable for high-temperature environments due to its 125°C rating. The unshielded design may require careful placement relative to sensitive traces. Verify that the 350 mΩ DCR meets the power loss constraints of the target circuit application.

Fixed Inductors Part Context

This part belongs to the AISC-Q series, which focuses on automotive-grade RF inductors. The series utilizes ceramic wirewound technology to achieve stable performance across wide temperature ranges. The 0402 form factor allows for dense board layouts in space-constrained electronic devices.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 33 nH value, 0402 package, and AEC-Q200 qualification. Check for equivalent DCR and Q factor specifications to ensure circuit compatibility.
