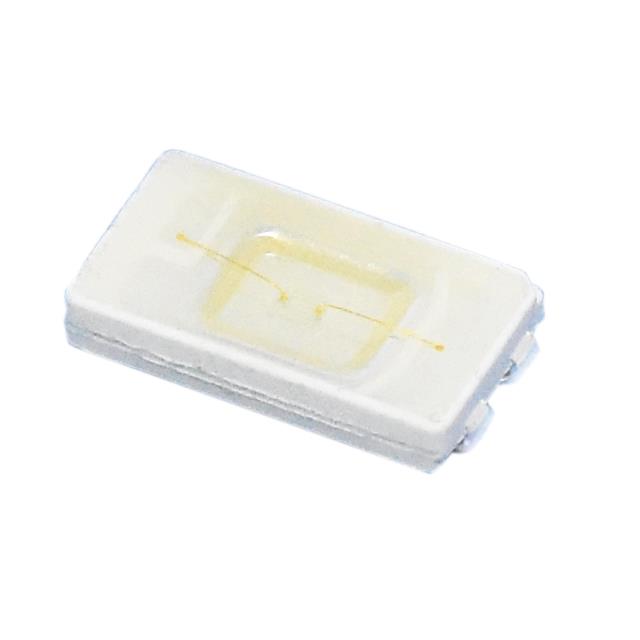

AL5630A-ZBM-150MA
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED BLUE 5630 SMD
- Series：-
- Mfr：Solidlite
- Package：Strip
- Color：Blue
- Configuration：-
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：2100mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：150mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：455nm
- Wavelength - Peak：-
- Features：-
- Package / Case：4-SMD, J-Lead
- Supplier Device Package：-
- Size / Dimension：5.30mm L x 3.00mm W
- Height (Max)：1.00mm
- Grade：-
- Qualification：-
Download product information
Overview
The Solidlite AL5630A-ZBM-150MA is a discrete blue light-emitting diode designed for surface-mount applications. It features a J-Lead package configuration with four solder pads, facilitating automated assembly processes. The component emits light at a dominant wavelength of 455nm, providing distinct blue illumination. It operates with a forward voltage of 3.2V and is rated for a test current of 150mA. The device has a maximum height of 1.00mm and offers a wide viewing angle of 120 degrees, ensuring broad visibility of the indicator status.
Feature Summary
- J-Lead surface-mount package design for reliable SMT integration
- Wide 120-degree viewing angle for enhanced visibility
- Blue emission profile optimized for clear visual indication
Applications
- Electronic equipment status indicators
- Control panel signal lights
- Consumer appliance operational feedback
Procurement Notes
Verify the specific ordering suffix to confirm the exact color binning and forward voltage characteristics required for your circuit design. Ensure that the PCB footprint matches the J-Lead package dimensions to guarantee proper mechanical retention and electrical connectivity during assembly.
Selection Notes
Select this component when a low-profile blue indicator is needed for high-brightness applications. Consider the 150mA drive requirement and ensure the driving circuit can supply sufficient current without exceeding thermal limits. The wide viewing angle makes it suitable for front-panel mounting where direct line-of-sight may vary.
Part Context
This part belongs to the Solidlite AL5630 series of surface-mount LEDs. The series provides various color options and drive currents within a standardized 5630 form factor. The ZBM suffix typically denotes specific optical and electrical parameters distinct from other variants in the same physical package family.
Replacement Considerations
Direct substitutes include the AL5630A-ZBN-150MA, which shares similar physical dimensions but may differ in specific optical characteristics. Verify compatibility by comparing forward voltage and luminous intensity specifications before substitution.
