ALMD-CY3F-YZ002

$1.35

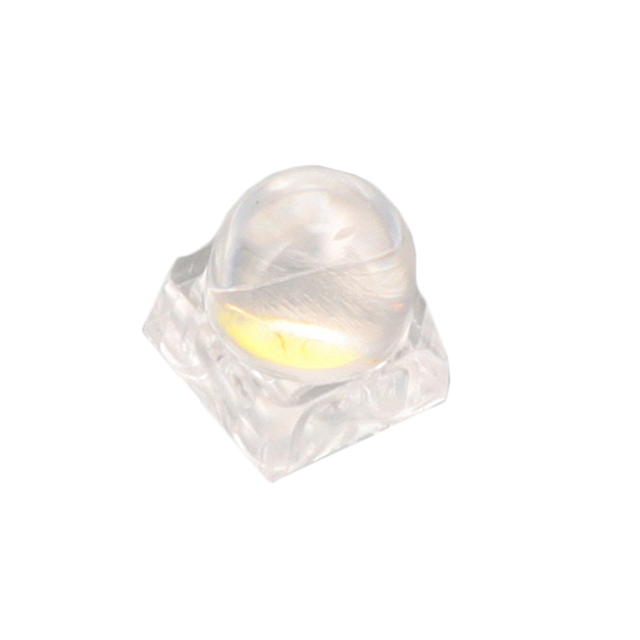

Description：LED WHITE RND 4SMD
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:dbe3828d17cd Category: LED Indication - Discrete Brand: Broadcom Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ALMD-CY3F-YZ002 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is LED WHITE RND 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for ALMD-CY3F-YZ002

Description：LED WHITE RND 4SMD
Series：-
Mfr：Broadcom Limited
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：-
Lens Style：Round with Domed Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：2.9V
Current - Test：20mA
Viewing Angle：30°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：4-SMD, Gull Wing
Supplier Device Package：4-SMD
Size / Dimension：4.20mm L x 4.20mm W
Height (Max)：7.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for ALMD-CY3F-YZ002

ALMD-CY3F-YZ002

LED Indication - Discrete Overview

The ALMD-CY3F-YZ002 is a white light-emitting diode from the Broadcom ALMD series, designed for surface-mount assembly. It features a 4-SMD鸥翼 (gull-wing) package with dimensions of 4.20mm in length and width, and a maximum height of 7.00mm. The component utilizes a round lens with a domed style and provides a viewing angle of 30 degrees. Electrical characteristics include a typical forward voltage of 2.9V and a test current of 20mA. It is classified as a standard configuration indicator LED.

LED Indication - Discrete Feature Summary

Surface-mount construction utilizing a 4-SMD gull-wing package design
White light emission with a 30-degree viewing angle
Round lens featuring a domed optical style

LED Indication - Discrete Applications

General-purpose electronic status indication
Panel-mounted device signaling
Consumer electronics visual feedback systems

LED Indication - Discrete Procurement Notes

Verify the specific suffix YZ002 to ensure correct binning and optical parameters. Confirm RoHS3 compliance requirements against project specifications. Check Moisture Sensitivity Level 3 handling protocols during storage and reflow soldering processes. Validate package compatibility with existing PCB footprints before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact white indicator with a 30-degree beam is required. The 4.20mm square footprint suits space-constrained designs. Ensure circuitry supports the 2.9V forward voltage drop at 20mA. Consider the gull-wing lead form factor for automated placement equipment compatibility.

LED Indication - Discrete Part Context

This part belongs to the Broadcom ALMD family of high-power LEDs. The ALMD series is engineered for robust performance in various lighting applications. The CY3 designation typically indicates specific chromaticity coordinates within the white spectrum. The YZ002 suffix defines the specific packaging and binning configuration for this variant.
