ALMD-CY3G-YZ002

LED Indication - Discrete Overview

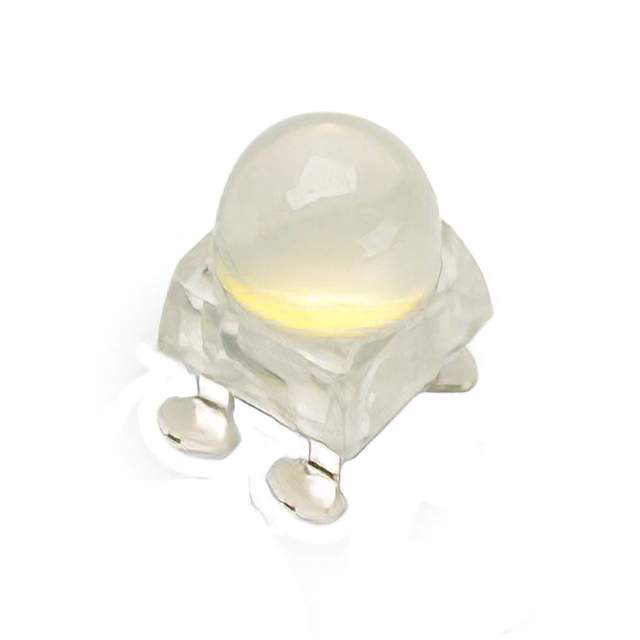

The ALMD-CY3G-YZ002 is a white surface-mount LED from the ALMD series, manufactured by Broadcom Limited. It features a round diffused lens with a 33-degree viewing angle and operates at a typical forward voltage of 2.9V under a 20mA test current. The component measures 4.20mm in length and width, with a maximum height of 7.00mm (or 6.5mm per specific datasheets). It emits white light with an intensity of 9.3 cd and has a power rating of 105 mW. The device supports operation between -40°C and +85°C, complies with RoHS3 standards, and carries MSL level 3 moisture sensitivity.

LED Indication - Discrete Feature Summary

• Round diffused lens design for wide-angle illumination
• High-power SMD configuration for compact integration
• Standard colorless lens material ensuring clear transmission

LED Indication - Discrete Applications

• General indicator lighting in electronic devices
• Status indication in consumer electronics
• Panel illumination for control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version, as dimensional data varies slightly between sources (6.5mm vs 7.00mm height). Confirm RoHS3 compliance status during procurement. Check MSL level 3 handling requirements for storage and reflow soldering processes to prevent moisture damage. Ensure the supplier provides official Broadcom documentation to validate the part number and manufacturing origin.

LED Indication - Discrete Selection Notes

Select this component when a round, diffused white LED is required for surface-mount assembly. The 33-degree viewing angle suits applications needing moderate beam spread rather than narrow focus. Verify that the 2.9V forward voltage aligns with the system's drive circuit capabilities. Consider the 4-SMD鸥翼 package dimensions for PCB footprint compatibility against similar high-power LED alternatives.

LED Indication - Discrete Part Context

This part belongs to the ALMD series of high-power LEDs from Broadcom Limited. The series is designed for general illumination and indicator applications requiring reliable performance in compact form factors. The ALMD-CY3G variant specifically denotes the white color and diffused lens option within the CY3 family, distinguishing it from clear lens variants like the ALMD-CY3F.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Broadcom ALMD series white LEDs with diffused lenses, such as ALMD-CY3F-YZ002, though note differences in viewing angle (30° vs 33°) and lens clarity. Cross-brand replacements require matching the 4-SMD鸥翼 package, 4.2x4.2mm footprint, and similar electrical characteristics.
