AM-27.600MBNQ-T

Crystals Overview

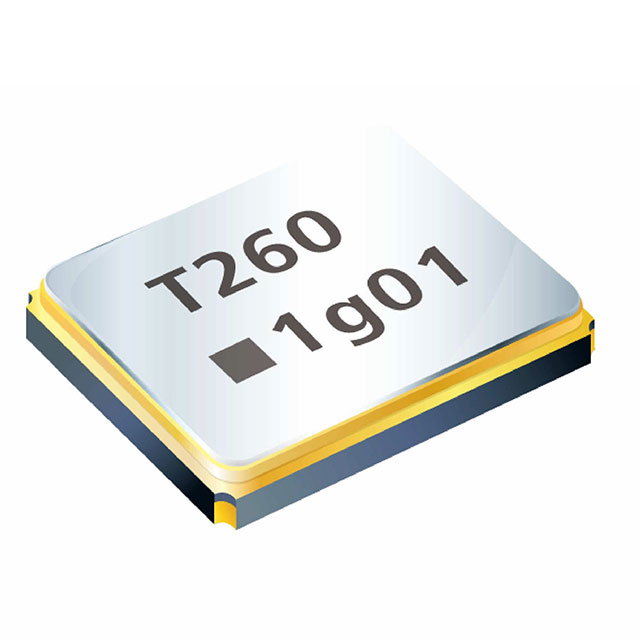

The AM-27.600MBNQ-T is a MHz quartz crystal manufactured by TXC Corporation, designed for automotive applications. It features a 3.2x2.5 mm seam seal package with four pads. The component operates at a frequency of 27.600 MHz with a frequency stability of +/-50ppm at ambient temperature (25°C) and +/-50ppm across the extended temperature range of -40°C to +125°C.

Crystals Feature Summary

• Automotive grade certification compliant with AEC-Q200 standards
• Seam sealed ceramic construction for enhanced environmental protection
• Surface mount design with four-pad configuration

Crystals Applications

• Automotive electronic systems requiring precise timing
• Vehicle infotainment and communication modules
• Industrial control units operating in high-temperature environments

Crystals Procurement Notes

Verify current production status and availability through authorized distributors. Confirm that the specified frequency tolerance and temperature range meet the target application requirements. Ensure compatibility with the 3.2x2.5 mm footprint during PCB layout validation. Check for any end-of-life notifications or alternative part recommendations from the manufacturer.

Crystals Selection Notes

Select this component when automotive reliability and wide temperature operation are required. The seam seal technology offers superior moisture resistance compared to standard packages. Consider the specific load capacitance requirements of the oscillator circuit. Verify that the +/-50ppm stability aligns with system clock accuracy needs.

Crystals Part Context

This part belongs to TXC Corporation's automotive crystal lineup, specifically utilizing seam seal packaging technology. It is distinct from standard commercial crystals due to its rigorous qualification under AEC-Q200 standards. The product supports designs needing robust performance in harsh vehicular environments.

Crystals Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TXC Corporation directly for cross-reference options or updated product line information.
