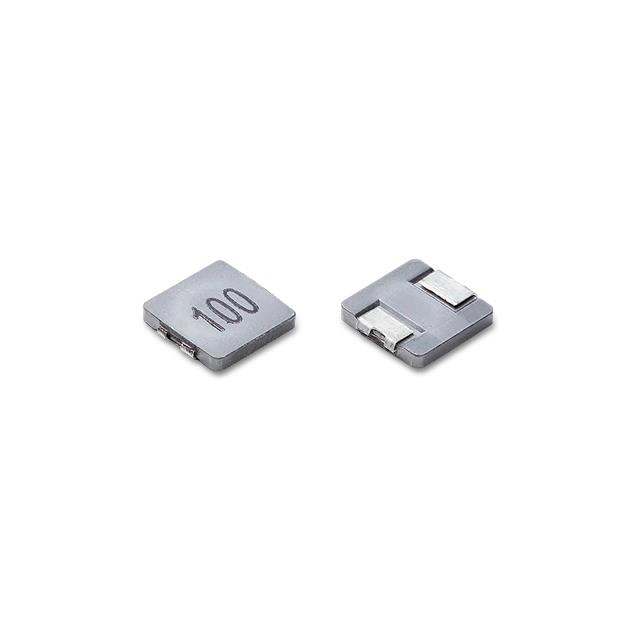

AMPI0410ECH100MT

AMPI0410ECH100MT is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Arlitech Electronic Corp.. Its product description is SMD POWER INDUCTORS 0410 10UH 20. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AMPI0410ECH100MT

• Description：SMD POWER INDUCTORS 0410 10UH 20
• Series：AMPI_ECH
• Mfr：Arlitech Electronic Corp.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：-
• Material - Core：Iron Alloy
• Inductance：10 µH
• Tolerance：±20%
• Current Rating (Amps)：1.4 A
• Current - Saturation (Isat)：1.6A
• Shielding：Shielded
• DC Resistance (DCR)：285mOhm
• Q @ Freq：-
• Frequency - Self Resonant：-
• Ratings：-
• Operating Temperature：-40°C ~ 125°C
• Inductance Frequency - Test：1 MHz
• Mounting Type：Surface Mount
• Package / Case：1616 (4040 Metric)
• Supplier Device Package：1616
• Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
• Height - Seated (Max)：0.039" (1.00mm)
• Features：-

Fixed Inductors datasheet and documents for AMPI0410ECH100MT
