AP2012CGCK

$0.23

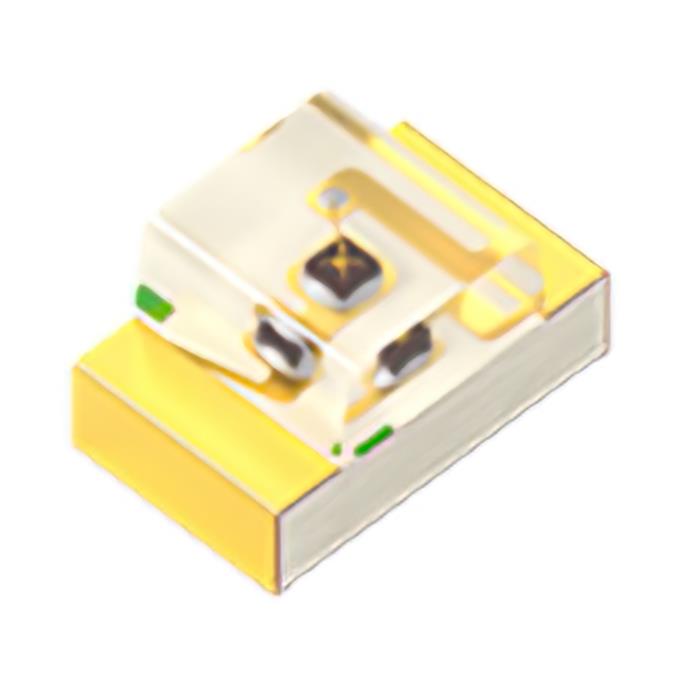

Description：2.0X1.2MM (0805) GREEN SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:98a261b1258f Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AP2012CGCK is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is 2.0X1.2MM (0805) GREEN SMD LED. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for AP2012CGCK

Description：2.0X1.2MM (0805) GREEN SMD LED
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：50mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2.5V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：570nm
Wavelength - Peak：574nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for AP2012CGCK

AP2012CGCK

LED Indication - Discrete Overview

The AP2012CGCK is a surface-mount LED from Kingbright, part of the KPT-2012 series. It emits green light with a peak wavelength of 570nm. The component features a rectangular lens measuring 1.2 x 0.75 mm and offers a viewing angle of 120 degrees. Electrical characteristics include a forward voltage of 2.5V and a maximum power dissipation of 75mW. It supports a maximum forward current of 150mA and provides a typical luminous intensity of 150 mcd. The device utilizes a two-pin configuration for surface mounting.

LED Indication - Discrete Feature Summary

Green emission with 120-degree viewing angle
Surface-mount construction in 2012 package
RoHS compliant manufacturing

LED Indication - Discrete Applications

Indicator applications
Backlighting solutions
Portable consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and thermal resistance values. Ensure compatibility with standard SMT reflow profiles during assembly. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement specifications.

LED Indication - Discrete Selection Notes

Select this component for designs requiring compact green illumination within restricted height limits. Consider the 150mA maximum forward current rating for drive circuit design. Evaluate the 120-degree viewing angle against optical requirements for visibility.

LED Indication - Discrete Part Context

This part belongs to the Kingbright KPT-2012 series of single-color surface-mount LEDs. It shares physical dimensions with other variants in the series but differs in semiconductor material to achieve the specific green color output. The 2012 footprint allows for high-density PCB layouts.
