Product Detailed Parameters

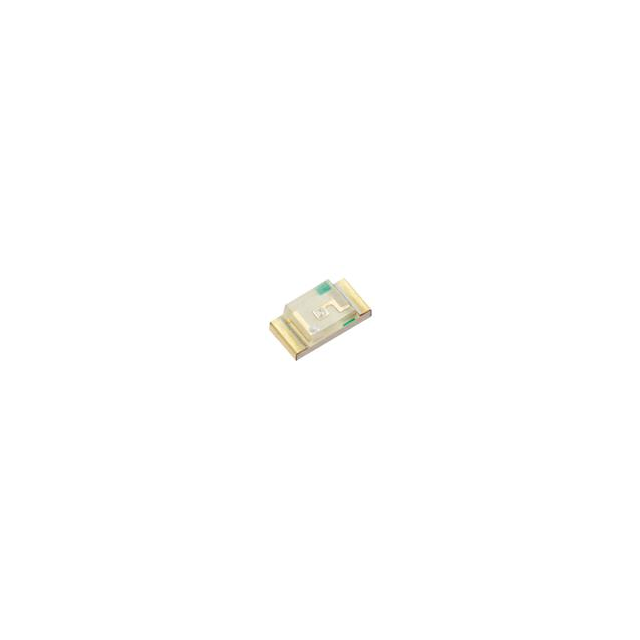

- Description：LED YELLOW DIFFUSED 1206 SMD
- Series：-
- Mfr：Kingbright
- Package：Bulk
- Color：Yellow
- Configuration：-
- Lens Color：Yellow
- Lens Transparency：Diffused
- Millicandela Rating：150mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：2.00mm x 1.60mm
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：588nm
- Wavelength - Peak：590nm
- Features：-
- Package / Case：1206 (3216 Metric)
- Supplier Device Package：1206
- Size / Dimension：3.20mm L x 1.60mm W
- Height (Max)：1.10mm
- Grade：-
- Qualification：-
Download product information
Overview
The Kingbright AP3216SYD is a surface-mount yellow light-emitting diode belonging to the KP-3216 series. It features a rectangular lens shape with a transparent, colorless finish and operates at a forward voltage of 2.5V. The component emits light at a peak wavelength of 590nm with a viewing angle of 120 degrees. Electrical specifications include a maximum forward current of 175mA and a maximum power dissipation of 75mW. The device utilizes a two-pin configuration for surface mounting.
Feature Summary
- Yellow LED emission with high brightness output
- Wide 120-degree viewing angle for broad visibility
- Rectangular lens design with transparent packaging
Applications
- General indicator lighting in electronic devices
- Panel status indication
- Consumer appliance signaling
Procurement Notes
Verify the manufacturer part number against official Kingbright documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical parameters and lens characteristics. Check RoHS compliance status if environmental regulations apply to the end product. Ensure storage conditions meet moisture sensitivity level requirements prior to soldering.
Selection Notes
Select this component when a wide beam angle is required for visibility from multiple directions. The 3216 package size offers a compact footprint suitable for space-constrained designs. Consider the 120-degree viewing angle and yellow color spectrum for applications requiring distinct visual alerts without excessive intensity.
Part Context
This part belongs to the Kingbright KP-3216 series of surface-mount LEDs. The series provides various color options within a standardized 3216 (1206) metric package dimension. These components are designed for automated assembly processes and offer consistent performance across different manufacturing batches.
Replacement Considerations
Compatible substitutes include other Kingbright parts in the KP-3216 series with matching yellow emission and 120-degree viewing angles, such as KP-3216SYCK. Verify pinout compatibility and thermal characteristics before substitution.
