APA1606ZGC/G

$0.85

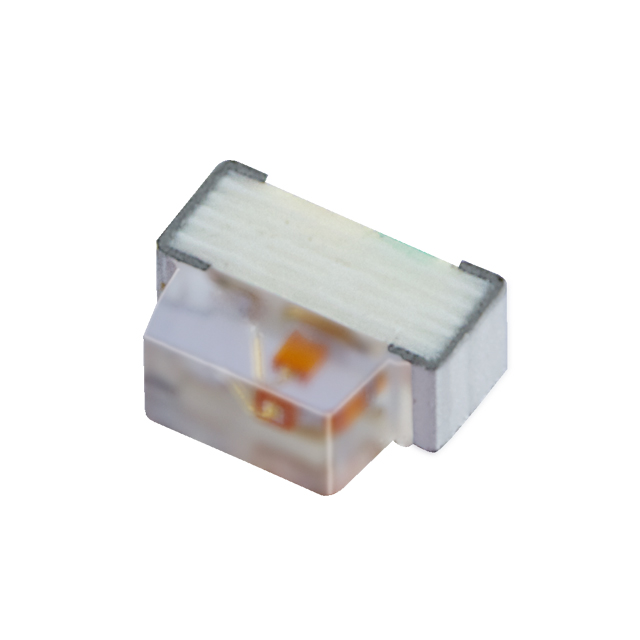

Description：LED GREEN CLEAR 2SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:29dc9f72e9c0 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APA1606ZGC/G is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN CLEAR 2SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APA1606ZGC/G

Description：LED GREEN CLEAR 2SMD R/A
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：650mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.10mm x 0.60mm
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：110°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：525nm
Wavelength - Peak：520nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：2-SMD
Size / Dimension：1.60mm L x 1.20mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APA1606ZGC/G

APA1606ZGC/G

LED Indication - Discrete Overview

The APA1606ZGC/G is a single-color green surface-mount LED with a right-angle configuration. It features a 1.6 mm x 0.6 mm package and emits at a peak wavelength of 525 nm. The device offers a nominal luminous intensity of 250 mcd with a viewing angle of 110 degrees. Electrical characteristics include a forward voltage of 3.3 V at 20 mA, resulting in a power rating of 102.5 mW. It operates within a temperature range of -40 °C to +85 °C and utilizes a water-clear rectangular lens.

LED Indication - Discrete Feature Summary

Right-angle SMD design for vertical light emission
High-intensity green output with wide viewing angle
Water-clear lens for optimal light transmission

LED Indication - Discrete Applications

Backlighting applications
Panel indicator lights
Electronic status indicators

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation against official Kingbright documentation to confirm exact optical and electrical tolerances. Ensure moisture sensitivity level 3 handling procedures are followed during storage and assembly. Confirm RoHS compliance status through current manufacturer declarations prior to procurement.

LED Indication - Discrete Selection Notes

Select this component when a compact, right-angle green indicator is required. Consider the 3.3 V forward voltage drop for circuit design. Evaluate the 250 mcd intensity against ambient lighting conditions. Verify compatibility with standard 0605 footprint layouts on printed circuit boards.

LED Indication - Discrete Part Context

This part belongs to Kingbright's 1606 series of right-angle SMD LEDs. It shares mechanical dimensions with other variants in the family but differs in semiconductor material and color output. The ZGC designation specifically denotes the green wavelength variant within this product line.
