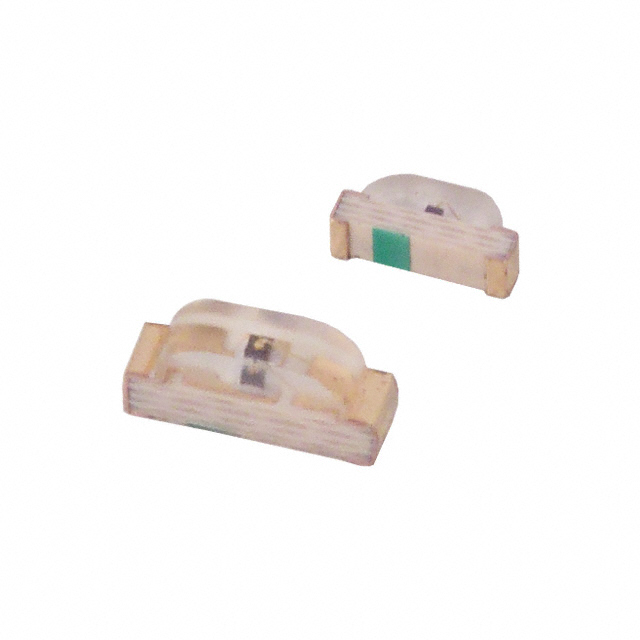

APA2106SRCPRV
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RED CLEAR 2SMD R/A
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：30mcd
- Lens Style：Rectangle with Domed Top
- Lens Size：1.70mm x 0.60mm
- Voltage - Forward (Vf) (Typ)：1.85V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：640nm
- Wavelength - Peak：660nm
- Features：-
- Package / Case：2-SMD, No Lead
- Supplier Device Package：2-SMD
- Size / Dimension：2.10mm L x 1.00mm W
- Height (Max)：0.60mm
- Grade：-
- Qualification：-
Download product information
Overview
The APA2106SRCPRV is a discontinued single-color red surface-mount LED manufactured by Kingbright. It features a right-angle 2-SMD, no-lead package with dimensions of 2.10 mm in length and 1.00 mm in width. The device emits light at a peak wavelength of 660 nm with a dominant wavelength of 640 nm. Key electrical parameters include a forward voltage of 1.85 V and a test current of 20 mA. The optical intensity is rated at 30 mcd, and it offers a viewing angle of 120 degrees.
Feature Summary
- Right-angle surface mount configuration for compact PCB layout
- Water clear lens design for optimal light transmission
- Compliant with RoHS3 standards for environmental safety
Applications
- Indicator lamps on electronic equipment panels
- Backlighting applications requiring low profile components
- General purpose visual signaling in consumer electronics
Procurement Notes
This component is officially obsolete and no longer in production. Verification of availability should focus on surplus stock or secondary market sources rather than direct manufacturer orders. Buyers must confirm the specific revision status and moisture sensitivity level (MSL 3) prior to procurement to ensure storage history compatibility with assembly timelines.
Selection Notes
Engineers replacing this part should consider the recommended substitute APA2107SURCK due to the obsolescence of the SRCPRV variant. Selection criteria must account for the right-angle mounting style and similar spectral characteristics. Verify that the alternative component matches the required forward voltage and luminous intensity specifications for the target application circuit.
Part Context
The APA2106 series represents Kingbright's line of ultra-low profile SMD LEDs designed for space-constrained designs. This specific model utilizes a standard red emitter technology housed in a robust plastic package. The product falls under the broader category of discrete optoelectronic indicators used for status visualization in various industrial and commercial devices.
Replacement Considerations
Kingbright recommends the APA2107SURCK as the official replacement for this obsolete part number. Users should verify pinout compatibility and thermal performance when transitioning to the substitute component.
