APB3025YSGC-F01

$0.43

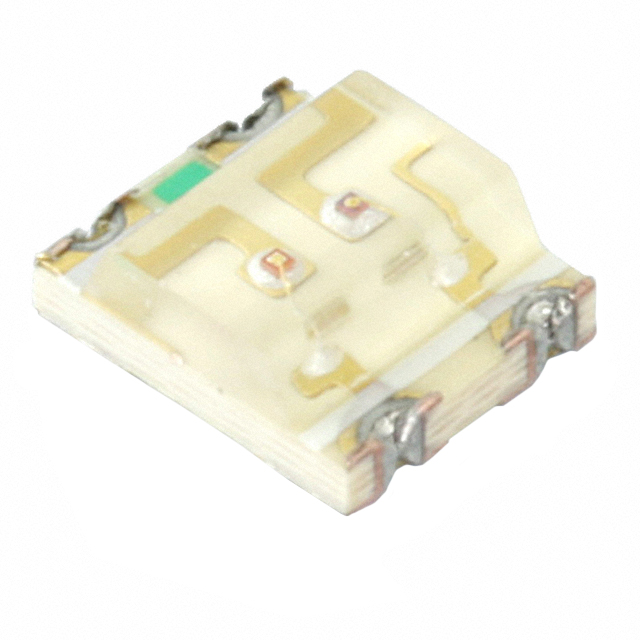

Description：LED GRN/YLW CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d1b3aa4b638d Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APB3025YSGC-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GRN/YLW CLEAR 4SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APB3025YSGC-F01

Description：LED GRN/YLW CLEAR 4SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Yellow
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：15mcd Green, 10mcd Yellow
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 2.50mm
Voltage - Forward (Vf) (Typ)：2.2V Green, 2.1V Yellow
Current - Test：20mA Green, 20mA Yellow
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：568nm Green, 588nm Yellow
Wavelength - Peak：565nm Green, 590nm Yellow
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD
Size / Dimension：3.00mm L x 2.50mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APB3025YSGC-F01

APB3025YSGC-F01

LED Indication - Discrete Overview

The APB3025YSGC-F01 is a bi-color surface-mount LED manufactured by Kingbright, housed in a 1210 (3025 metric) package. It features independent green and yellow emitters within a single water-clear lens. The green element operates at a peak wavelength of 568 nm with a typical forward voltage of 2.2 V, while the yellow element peaks at 588 nm with a typical forward voltage of 2.1 V. Both elements are tested at a forward current of 20 mA. The device offers a viewing angle of 120 degrees and has a maximum height of 1.1 mm.

LED Indication - Discrete Feature Summary

Dual-emitter configuration providing independent green and yellow light sources within a compact SMD footprint.
Water-clear rectangular lens design optimized for visibility and standard indicator applications.
RoHS3 compliant construction ensuring environmental safety standards are met.

LED Indication - Discrete Applications

Status indication on electronic control panels
Power state signaling in consumer devices
Multi-function status indicators in industrial equipment

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distribution channels to ensure compliance with RoHS3 specifications. Confirm that the specific suffix matches the required optical parameters, as variations may exist within the product family. Cross-reference datasheet details regarding moisture sensitivity level and reflow soldering profiles prior to assembly integration.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require dual-color functionality without increasing board area. The 1210 package size balances visibility with density requirements. Ensure circuit design accommodates the distinct forward voltage characteristics of the green and yellow elements to maintain consistent brightness levels across both colors.

LED Indication - Discrete Part Context

This part belongs to the Kingbright APB3025 series of bi-color LEDs, designed for surface-mount technology. The series utilizes separate die configurations to deliver distinct color outputs from a unified package. This specific model variant specifies the yellow-green color combination with defined wavelength tolerances suitable for general-purpose indication tasks.
