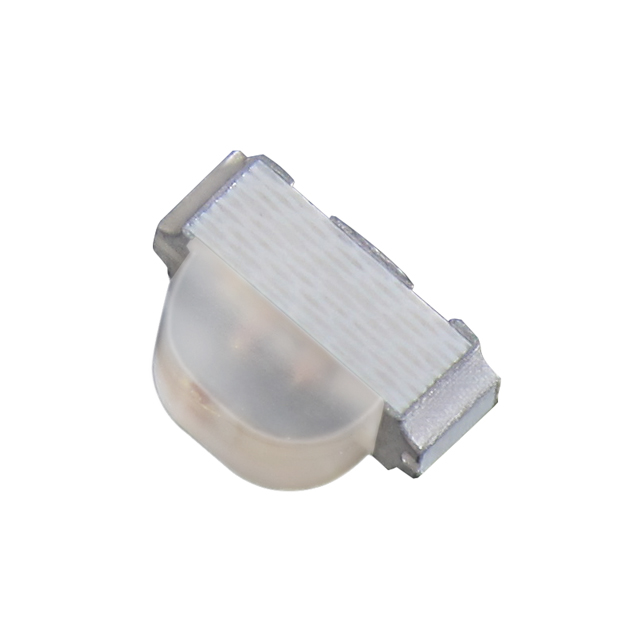

APBA3010SEKCGKC-GX
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED GREEN/ORANGE CLEAR 2SMD R/A
- Series：-
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Orange
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：70mcd Green, 320mcd Orange
- Lens Style：Rectangle with Domed Top
- Lens Size：2.00mm x 1.00mm
- Voltage - Forward (Vf) (Typ)：2.1V Green, 2.1V Orange
- Current - Test：20mA Green, 20mA Orange
- Viewing Angle：140°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：570nm Green, 601nm Orange
- Wavelength - Peak：574nm Green, 610nm Orange
- Features：-
- Package / Case：2-SMD, No Lead
- Supplier Device Package：2-SMD
- Size / Dimension：3.00mm L x 2.00mm W
- Height (Max)：1.15mm
- Grade：-
- Qualification：-
Download product information
Overview
The Kingbright APBA3010SEKCGKC-GX is a bi-color surface-mount LED featuring orange and green emitters in a 3.0mm x 2.0mm x 1.0mm right-angle package. It utilizes AlGaInP technology with a water-clear semitube lens. The device operates at a forward current of 20mA, with typical forward voltages of 2V for orange and 2.1V for green. Peak wavelengths are 601nm (orange) and 525nm (green). It offers a 140-degree viewing angle and is moisture-sensitive (MSL Level 3).
Feature Summary
- Bi-color configuration combining orange and green light sources within a single compact footprint.
- Right-angle surface mount design facilitates vertical mounting on printed circuit boards.
- Water-clear semitube lens provides high transparency and a wide 140-degree viewing angle.
Applications
- Status indicators for home appliances
- Smart appliance control panels
- Wearable and portable electronic devices
Procurement Notes
Verify the specific suffix against the manufacturer's latest datasheet to confirm pinout orientation and color sequence. Ensure compliance with MSL Level 3 handling requirements during storage and assembly. Confirm RoHS status and lead time availability directly with authorized distributors prior to ordering.
Selection Notes
Select this component when a dual-color indication is required in space-constrained applications. The right-angle form factor is suitable for PCBs where vertical profile or specific connector alignment is necessary. Verify that the 20mA drive current and voltage drops align with the target circuit design constraints.
Part Context
This part belongs to the Kingbright APBA3010 series of low-profile bi-color LEDs. The series is designed for general indication purposes, offering a balance between visual intensity and physical size. The specific model denotes the orange/green color combination and the right-angle package style.
Replacement Considerations
Check for direct substitutes such as APBA3010SYKCGKC-GX for green/yellow variants or APA3010SEC for single-color orange options. Ensure any replacement matches the 3-SMD no-lead package dimensions and right-angle mounting requirement.
