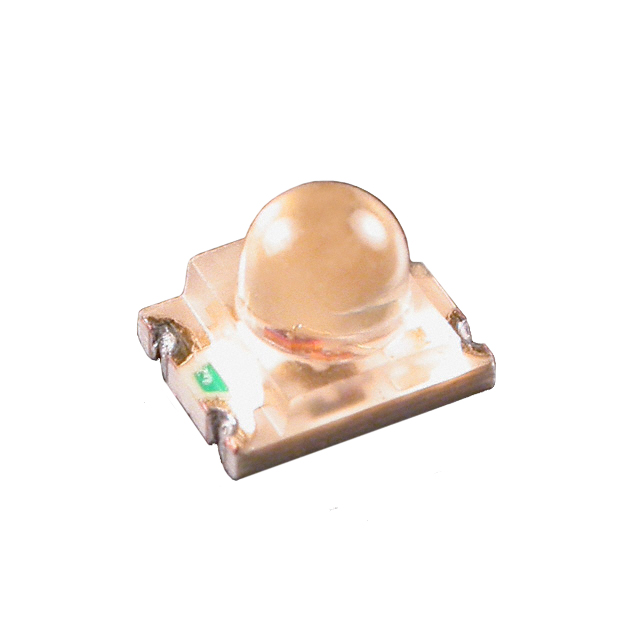

APBD3224LQBDCGKC
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED BLUE/GREEN CLEAR 4SMD
- Series：HELI Colour
- Mfr：Kingbright
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue, Green
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：30mcd Blue, 30mcd Green
- Lens Style：Round with Domed Top
- Lens Size：1.80mm Dia
- Voltage - Forward (Vf) (Typ)：2.7V Blue, 1.9V Green
- Current - Test：2mA Blue, 2mA Green
- Viewing Angle：20°
- Mounting Type：Surface Mount
- Wavelength - Dominant：465nm Blue, 570nm Green
- Wavelength - Peak：460nm Blue, 574nm Green
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-SMD
- Size / Dimension：3.20mm L x 2.40mm W
- Height (Max)：2.50mm
- Grade：-
- Qualification：-
Download product information
Overview
The Kingbright APBD3224LQBDCGKC is a bi-color surface-mount LED in the HeliColour series, featuring a 1210 (3.2x2.4mm) package with a water-clear dome lens. It emits blue light at 470 nm and green light at 525 nm. The forward voltage is typically 2.65 V for blue and 1.9 V for green at a test current of 2 mA. Optical intensity reaches 50 mcd for blue and 250 mcd for green. Power ratings are 75 mW for blue and 102.5 mW for green. Operating temperature ranges from -40°C to +85°C.
Feature Summary
- Dual-chip bi-color configuration enabling independent red and green emission within a single compact SMD footprint.
- Water-clear dome lens design provides a standardized 20-degree viewing angle for consistent visual indication.
Applications
- Status indication on electronic control panels
- Multi-state signaling in industrial automation equipment
- Visual feedback components in consumer appliance interfaces
Procurement Notes
Verify component authenticity through authorized Kingbright distributors or certified partners. Confirm RoHS compliance status via official datasheets prior to integration. Ensure handling procedures account for moisture sensitivity classification during storage and reflow soldering processes to maintain device reliability.
Selection Notes
Select this component when space-constrained designs require distinct color coding for operational states. The 1210 form factor suits high-density PCB layouts. Verify that circuit drivers accommodate the specific forward voltage differences between the blue and green chips to ensure optimal brightness and longevity.
Part Context
This part belongs to Kingbright's HeliColour series, which specializes in multi-color LEDs for complex indication needs. The 3224 metric package size is a standard industry footprint, allowing compatibility with existing automated assembly equipment designed for similar surface-mount LED dimensions.
Replacement Considerations
APBD3224LSURKZGKC: Red/Green variant with identical 1210 package dimensions and mounting style. KPD-3224CGCK: Single-color green alternative in the same series, lacking bi-color functionality but sharing physical constraints.
