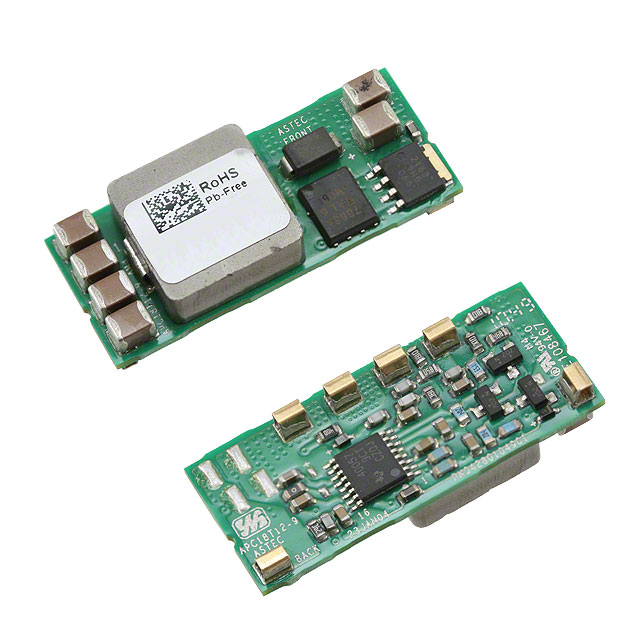

APC18T12-9JL

APC18T12-9JL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.75-5.5V 75W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for APC18T12-9JL

• Description：DC DC CONVERTER 0.75-5.5V 75W
• Series：APC18 (75W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.75 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：18A
• Power (Watts)：75 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：92%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：1.30" L x 0.53" W x 0.34" H (33.0mm x 13.5mm x 8.6mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for APC18T12-9JL
