APD3224QBC/D-F01

LED Indication - Discrete Overview

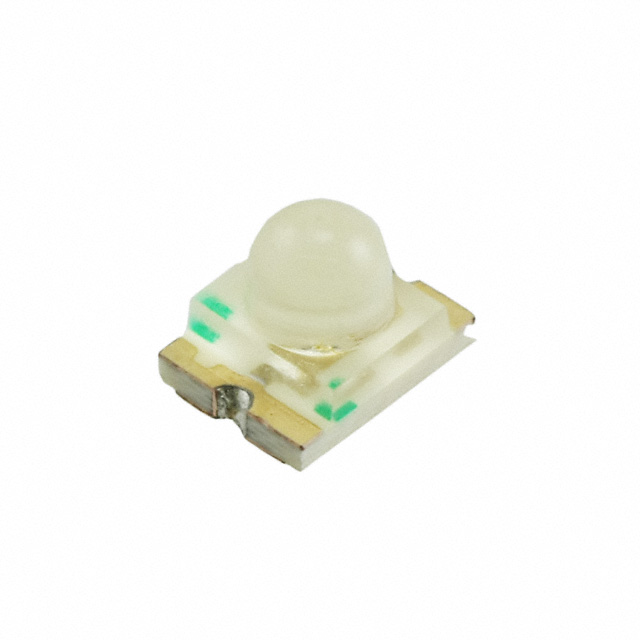

The Kingbright APD3224QBC/D-F01 is a single-color blue surface-mount LED in the HeliColour series. It utilizes a 1210 (3.2x2.4mm) package with a water-clear dome lens. Key electrical parameters include a peak wavelength of 470 nm, a forward voltage of 3.3V, and a drive current of 20mA. The component offers an optical intensity of 800 to 900 mcd. It operates within a temperature range of -40°C to +85°C and features moisture sensitivity.

LED Indication - Discrete Feature Summary

• Emits blue light at a 470nm peak wavelength
• Features a water-clear dome-shaped lens for optimized light transmission
• Designed for standard SMD/SMT mounting processes

LED Indication - Discrete Applications

• Indicator lights for electronic devices
• Backlighting applications requiring blue illumination
• Status indication on control panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the manufacturer's official datasheet to ensure compatibility with required electrical and optical specifications. Confirm moisture sensitivity handling procedures are followed during storage and assembly to maintain component integrity and performance reliability.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity blue indicator is required in a compact 1210 footprint. Consider the 20mA drive current and 3.3V forward voltage requirements for circuit design. Ensure the 470nm wavelength aligns with visual signaling needs and that the operating temperature range suits the intended environment.

LED Indication - Discrete Part Context

This part belongs to Kingbright's 3224 series of surface-mount LEDs. The series includes both single-color and bi-color options in the standard 1210 metric package size. This specific model represents the blue variant within that family, sharing physical dimensions with other colors in the lineup.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires consulting the manufacturer's official replacement guide or equivalent technical specifications from alternative suppliers.
